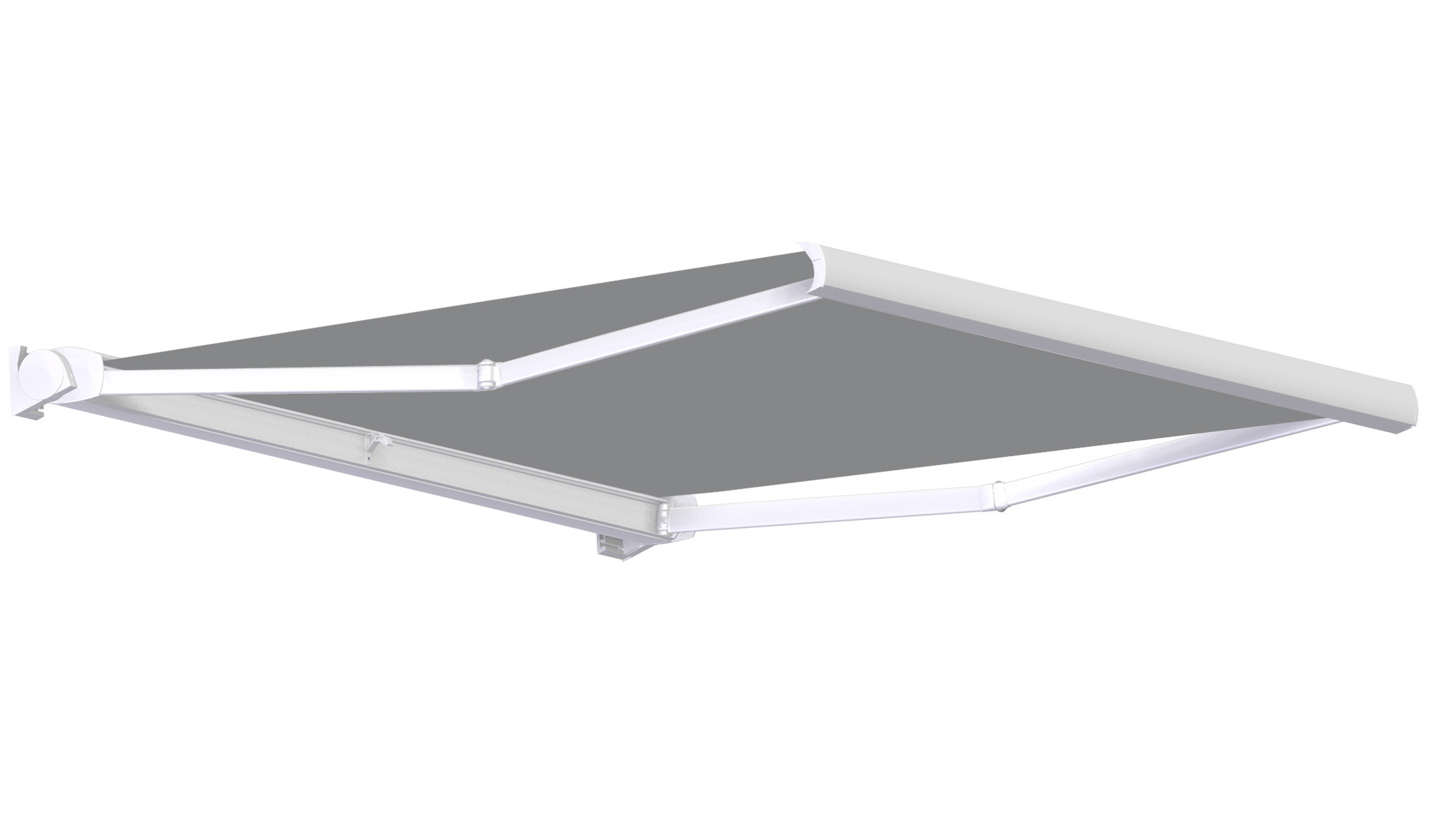

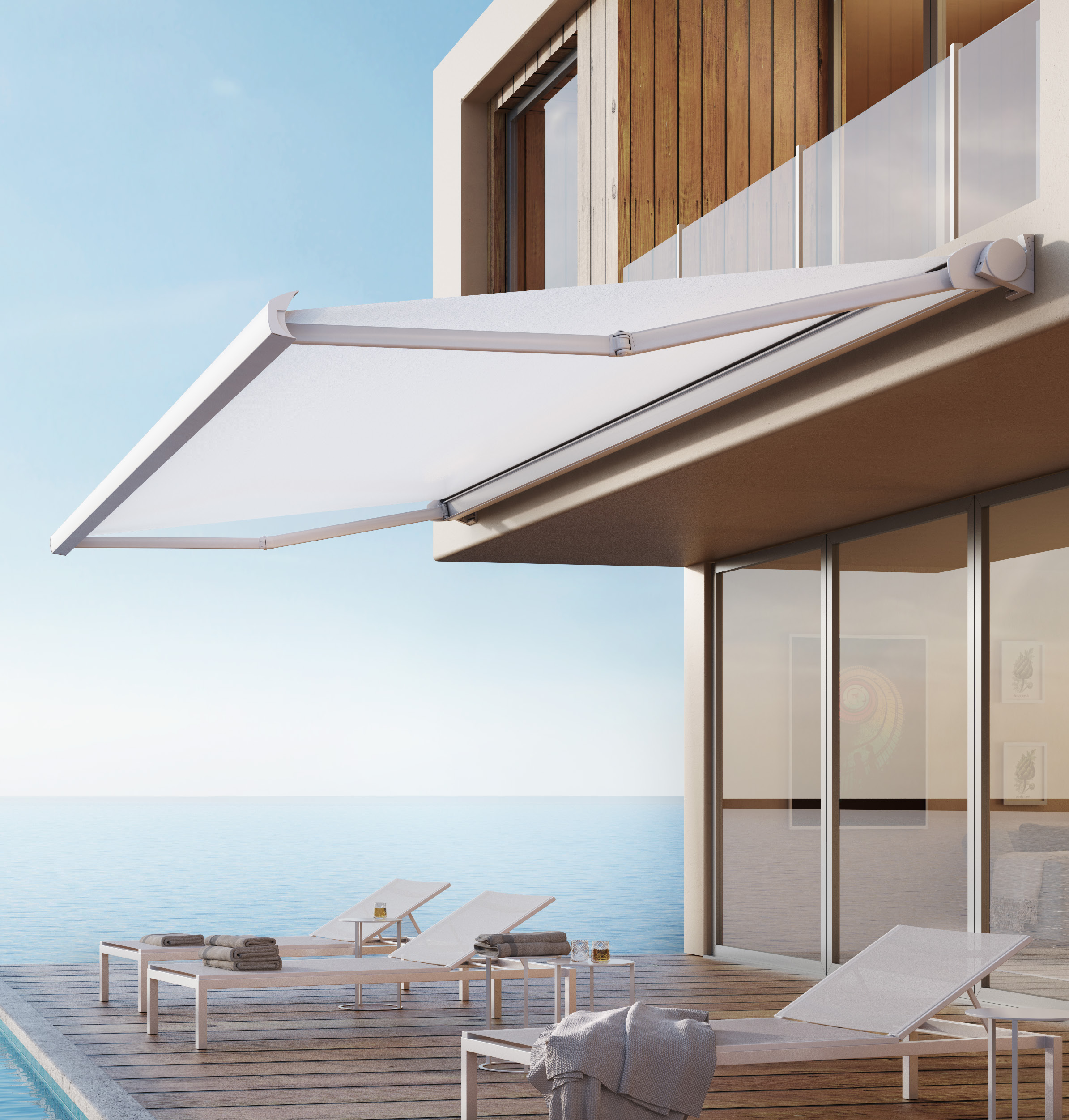

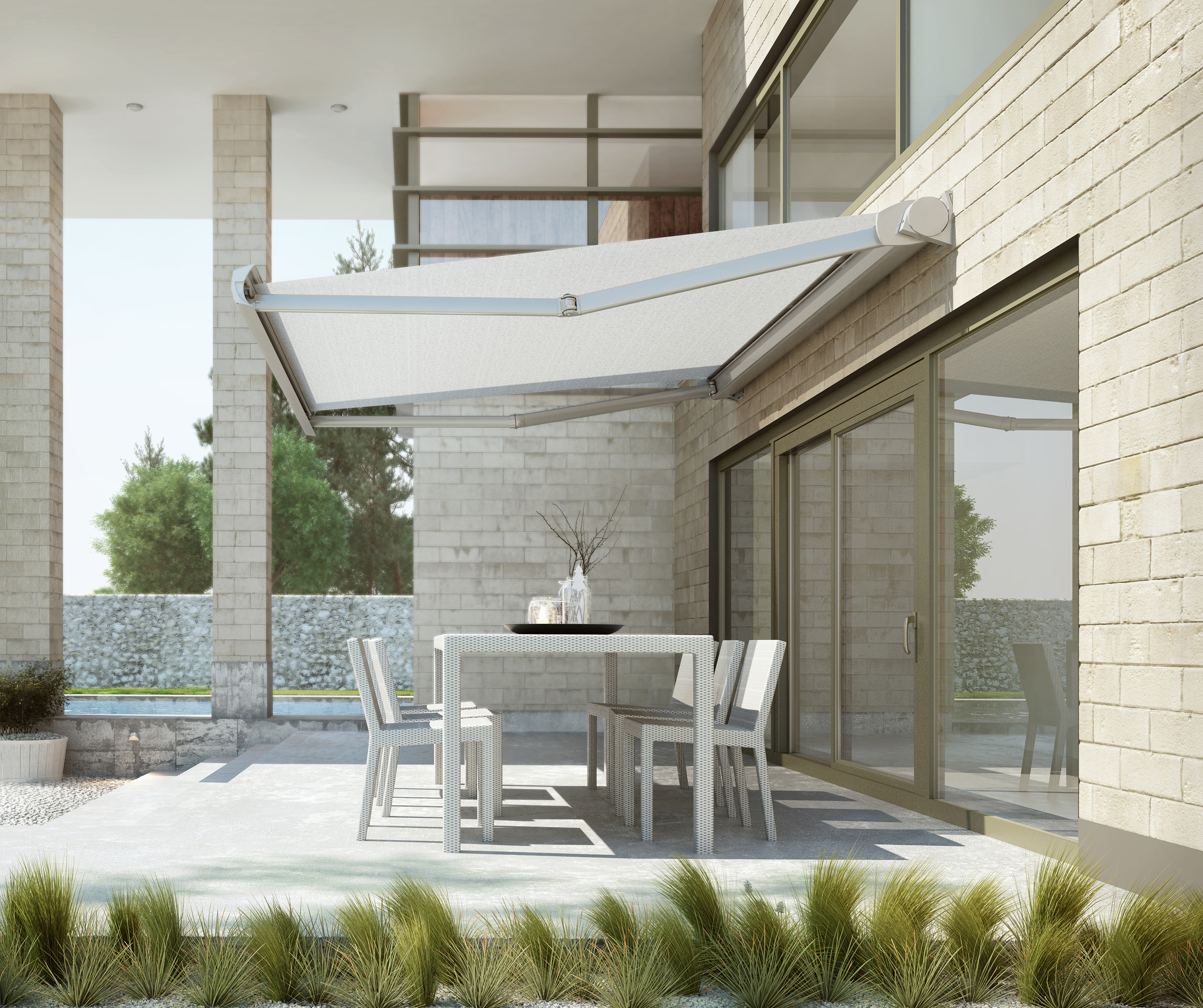

Domina Full Cassette Folding Arm Awning

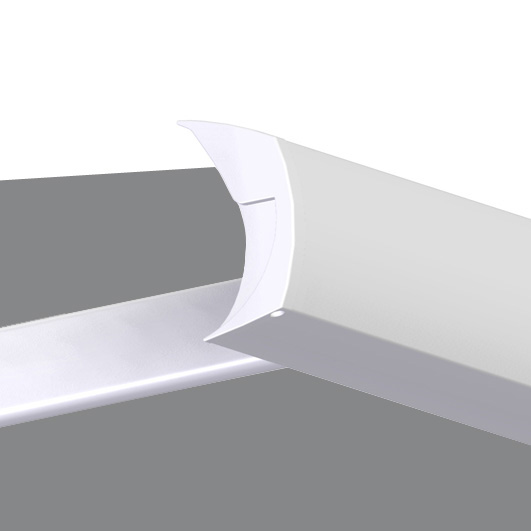

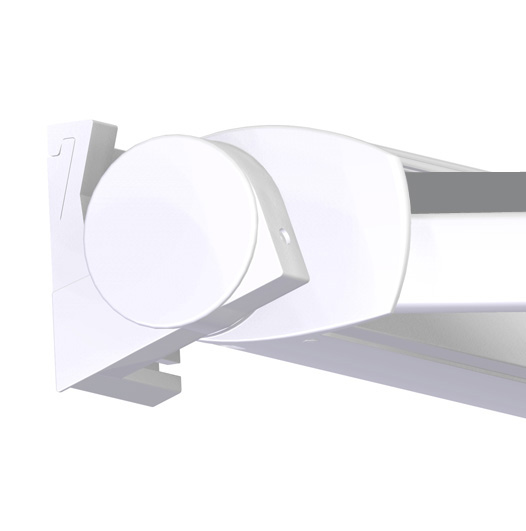

The Domina is a fully enclosed cassette awning with a sleek front bar.

Domina offers ultimate protection of the awning, components and fabric.  The awning MUST be end fixed – no intermediate fixing is available.

5 Year product hardware warranty.


Usage and Maintenance Manual Brochure

Features

  • Full Cassette awning offering ultimate protection of the awning, components & fabric
  • Width from 1.92m to 6m
  • Maximum awning size 5m x 3.6m, or 6m x 3.1m
  • Heavy Duty Arms with Stainless Steel Chain
  • Arm sizes 1600mm, 1850mm, 2100mm, 2350mm, 2600mm, 3100mm & 3600mm
  • 70mm Galvanised Roller Tube with welded stream for added strength
  • Manual or Motorised operation
  • 11:1 Gear-Box is standard for manual awnings
  • Pitch Adjustment from 5 degrees to 80 degrees is possible with Wall mounting
  • Pitch Adjustment from 5 degrees to 85 degrees is possible with Ceiling mounting
  • The Domina must be end fixed - no intermediate fixing is available


Colour Options

Standard Dulux Duralloy and Interpon Textura colours are included in the price.


Wind Rating

Wind Class 1 (European)/Beaufort Force 4 (Australian).

Maximum wind speed 27kph.


Specifications

Width 1.92m ↔ 6m

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 3.1m, 3.6m


Domina Wall/Face Fix


Domina Wall/Face Fix 80 Degree Pitch


Domina Ceiling/Top Fix


Domina Ceiling/Top Fix 80 Degree Pitch


Product Options

Somfy Motors

Orea 50 RTS 40/17


200mm Face Fix or Top Fix Bracket


Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Whirlybird Wind Sensor in White


Reverse Fascia 10 & 22 degree brackets

Reverse Fascia 10 & 22 degree brackets need to be fitted onto a beam.

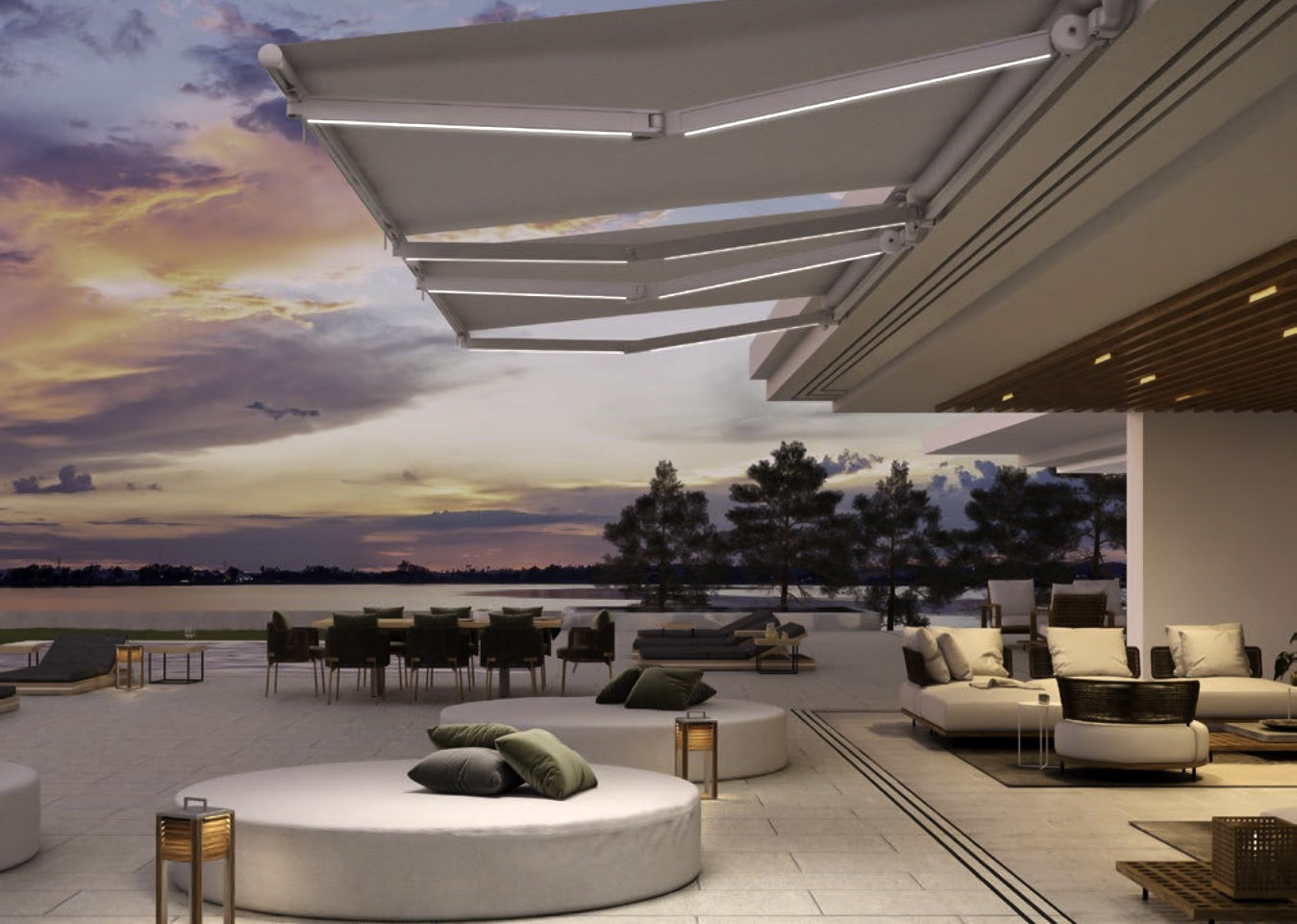

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.

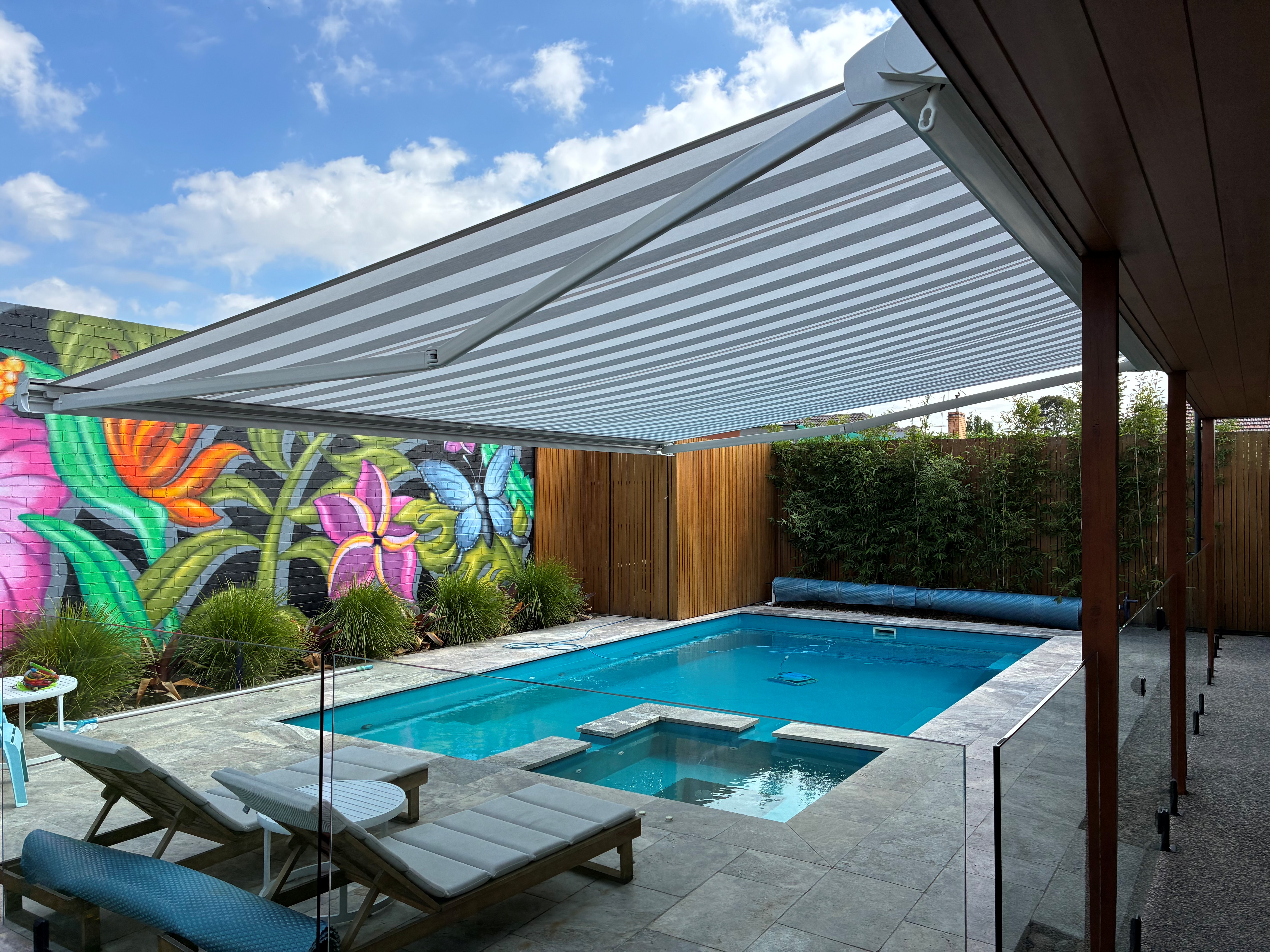

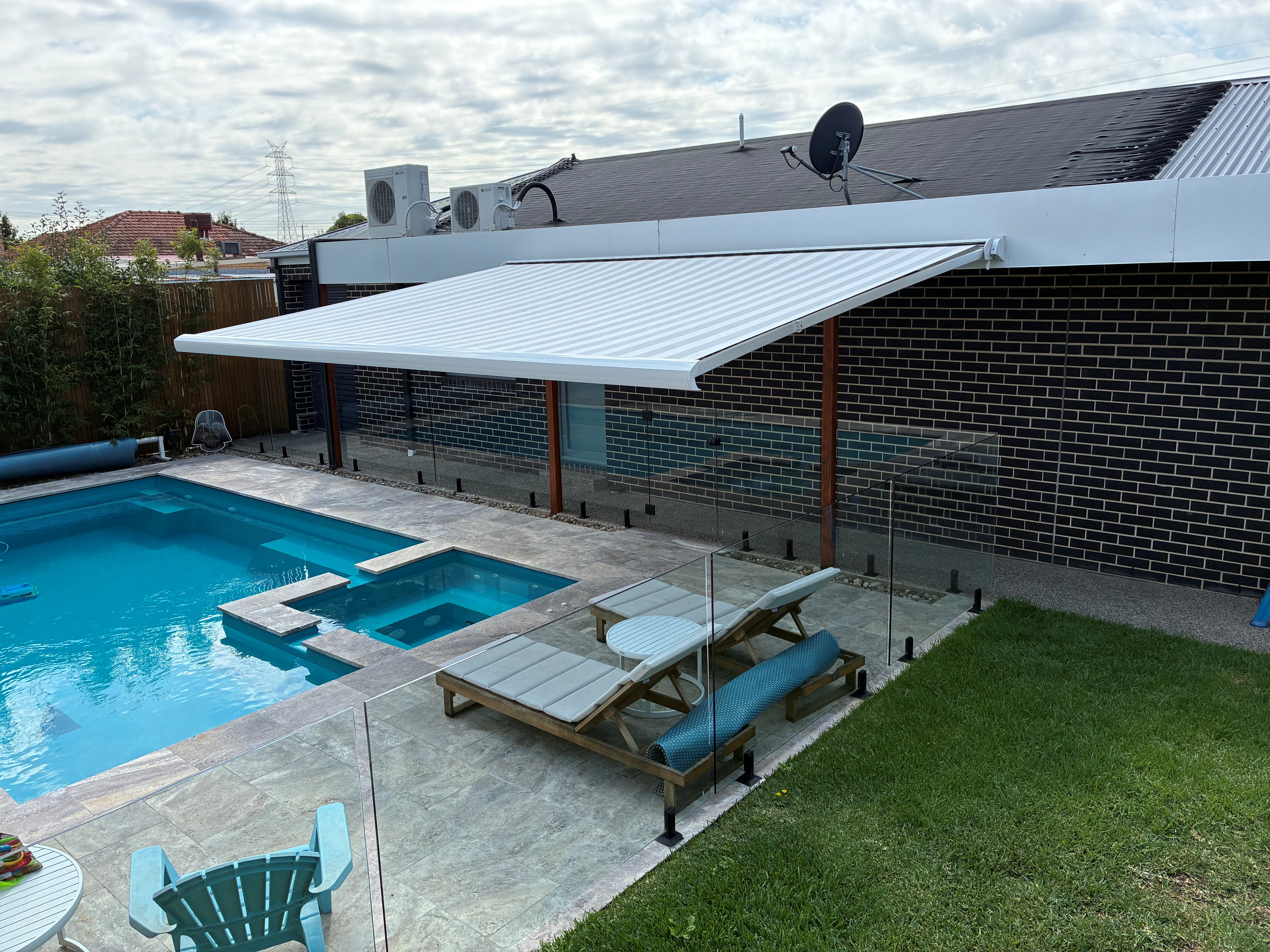

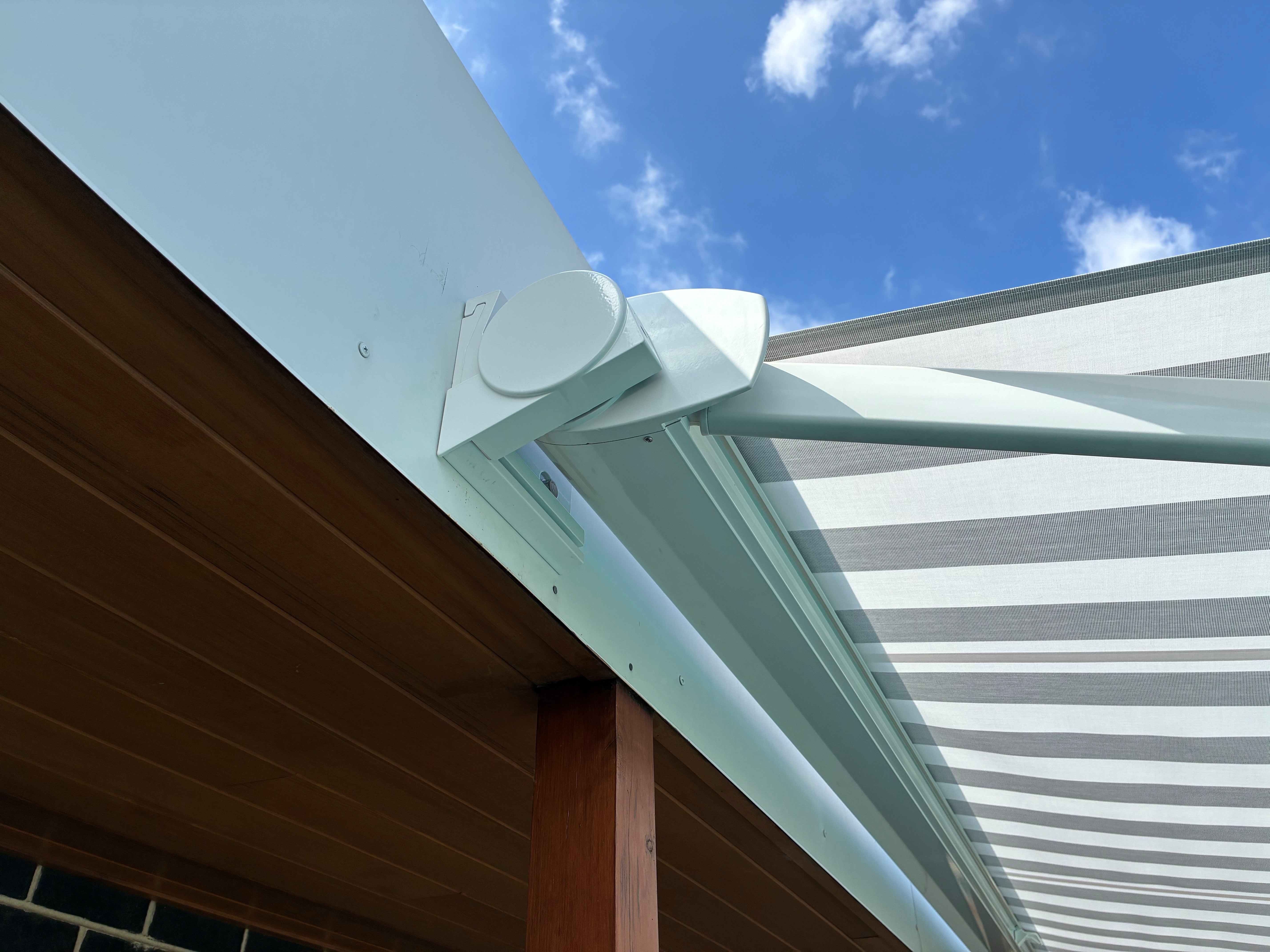

Photo courtesy of Kiwi Fit Blinds Melbourne

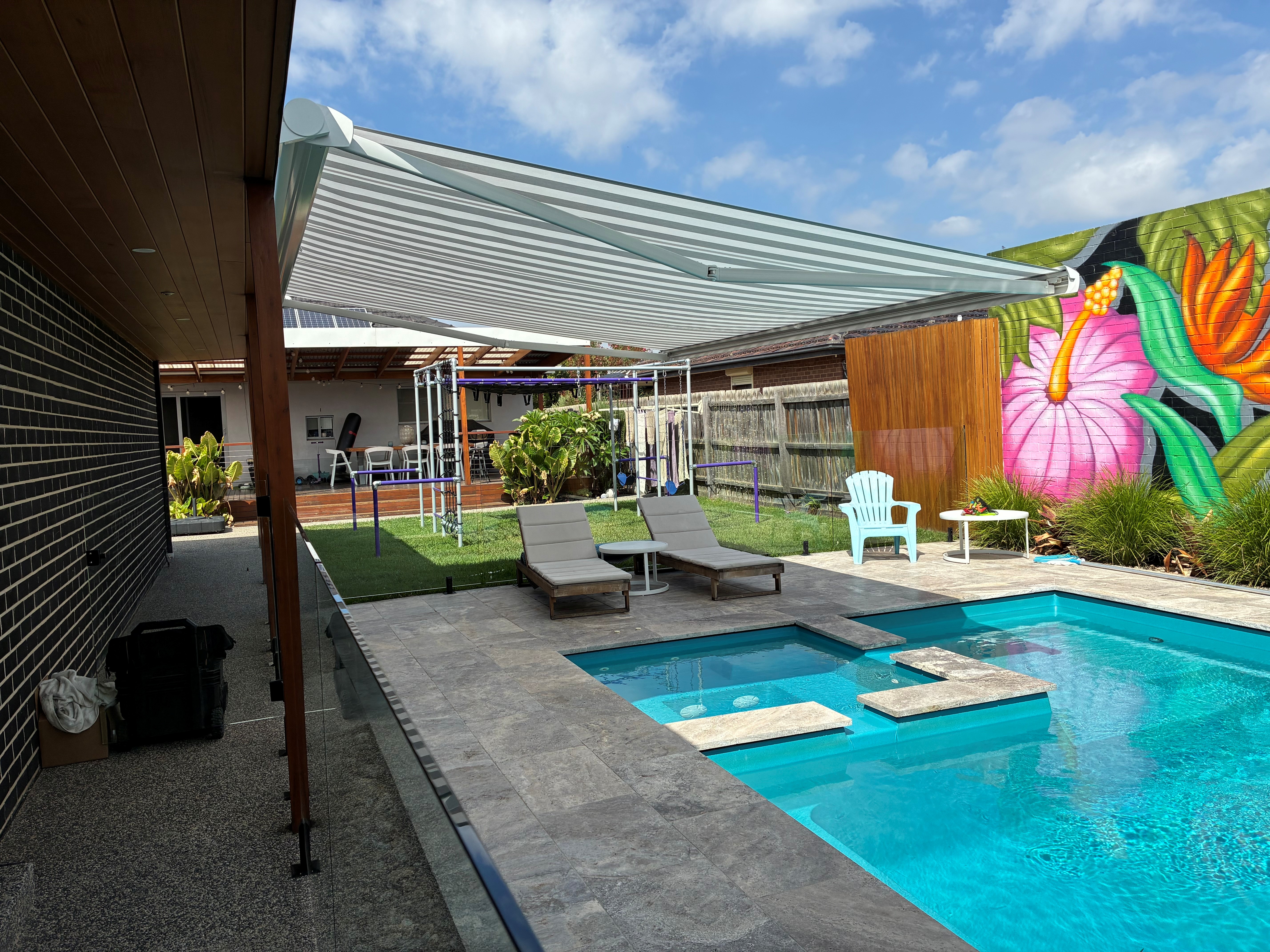

Photo courtesy of Kiwi Fit Blinds Melbourne
