Vertizip

The VERTIZIP range has been designed to keep the sun off your windows thus reducing the heat in your office or home. It is also great for those patio and decking areas where you want to sit and enjoy the outdoors without the blistering heat.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

The VERTIZIP 95 & VERTIZIP 125 uses the existing Vertiscreen head box and end caps, with a slight change to the side channels, bottom rail and some internal parts.

The zip is housed inside a PVC/Rubber insert that locates inside the side channel.  This stops the zip from pulling out of the channel.  It can be face fixed through the cavity of the side channels, or for reveal fit there is an extra aluminium profile that clips onto the back of the side channels which is then screwed to the wall.

There are two different side channels, with 40mm being for manual, and 30mm for motor only.  This is due to the thickness of the gearbox.

VERTIZIPS are custom made to your size and colour requirements, ensuring you get what you want.

A Heavy Bottom Rail & Heavy Side Channel is available as an optional extra, which helps avoid bottom rail movement in high wind areas.

Features - Vertizip 95

  • Stylish Powder-coated Aluminum Head-Box  95mm x 95mm
  • The Vertizip Range offers a choice of 2 side channels - 40mm for manual and 30mm for motor.
  • Vertizip 95 Sizes from 0.65m- 4.50m wide, and drop from 0.65m – 2.7m
  • 63mm Galvanised Roller Tube with welded stream for added strength to 3m, 70mm thereafter
  • 3.5:1 Gearbox is standard - motorisation is an optional extra

Features - Vertizip 125

  • Stylish Aluminum Head-Box 125mm x 125mm
  • The Vertizip Range offers a choice of 2 side channels - 40mm for manual and 30mm for motor.
  • Vertizip 125 sizes from 0.65m - 5.4m wide, and drop from 0.65m – 3.3m
  • 78mm Galvanised Roller Tube with welded stream for added strength
  • 7:1 Gearbox is standard - motorisation is an optional extra

Colour Options

Standard Dulux Duralloy powder-coat colours are included in the price

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed of 37kph

Specifications

Vertizip 95

Width 0.65m ↔ 4.5m

Drop 0.65m ↔ 2.7m

Vertizip 125

Width 0.65m ↔ 5.4m

Drop 0.65m ↔ 3.3m

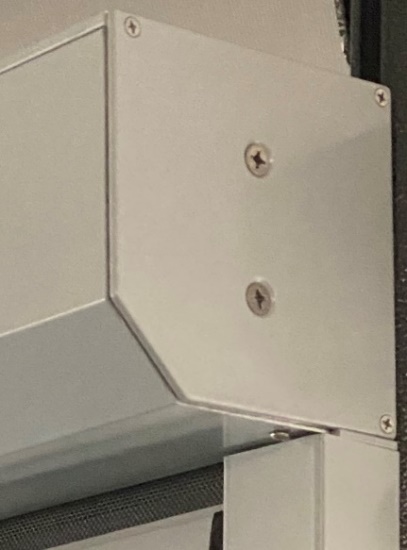

Vertizip Head-Box


 Vertizip 40mm Side Channel for manual & 30mm Side Channel for motor with Bottom Rail


Vertizip Bottom Rail



Product Options

Somfy Motors

Altus 50 RTS 10/17


Heavy Bottom Rail & Heavy Side Channel

Helps to avoid bottom rail movement in high wind areas


Spacer Track


Side Fix Track

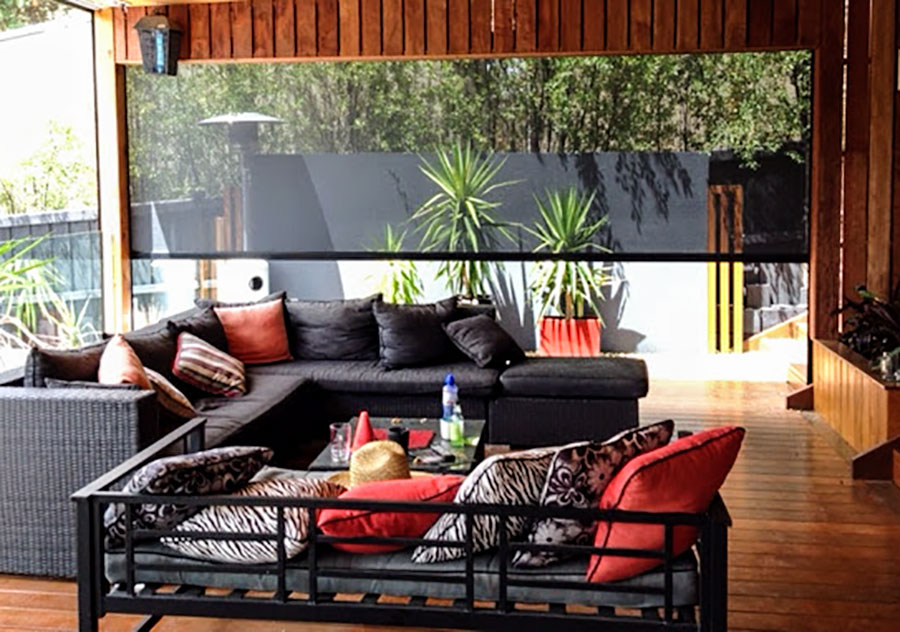

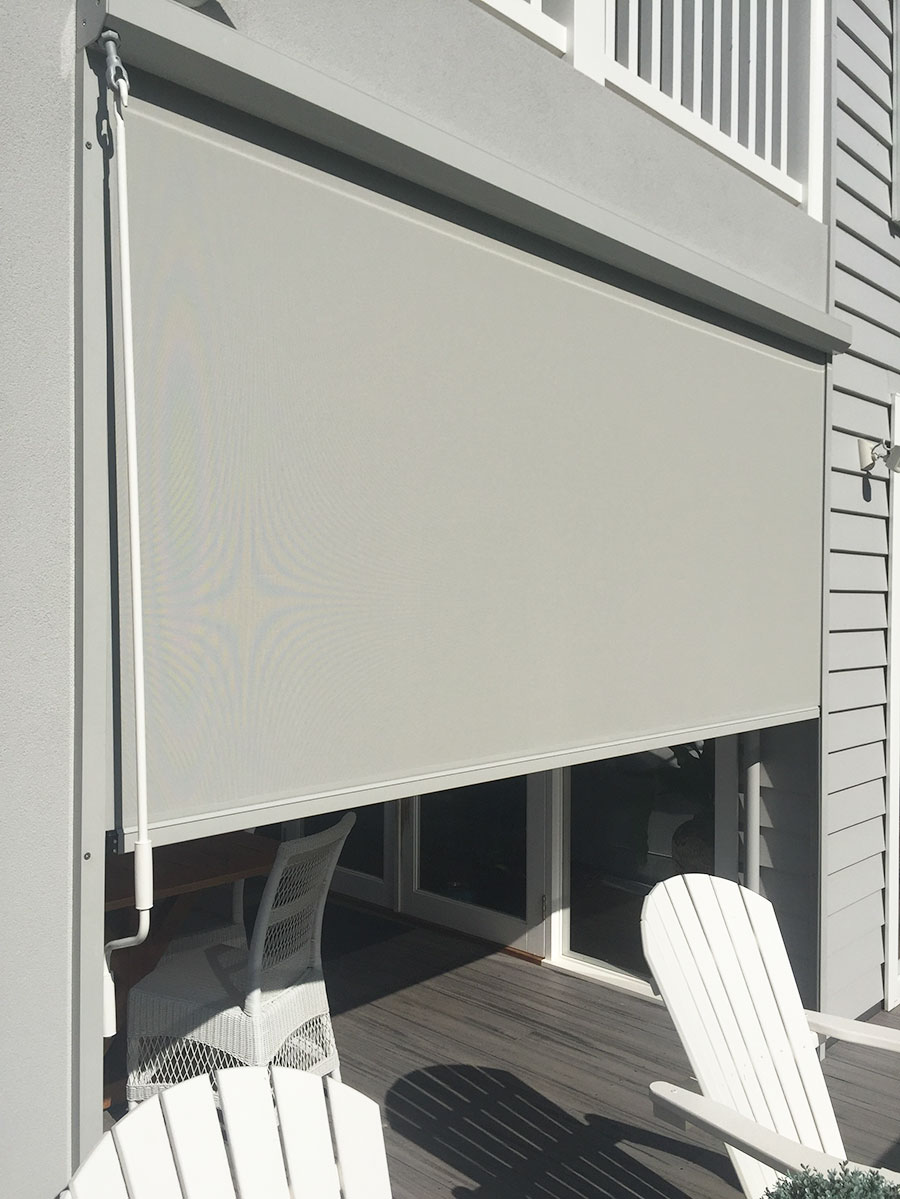

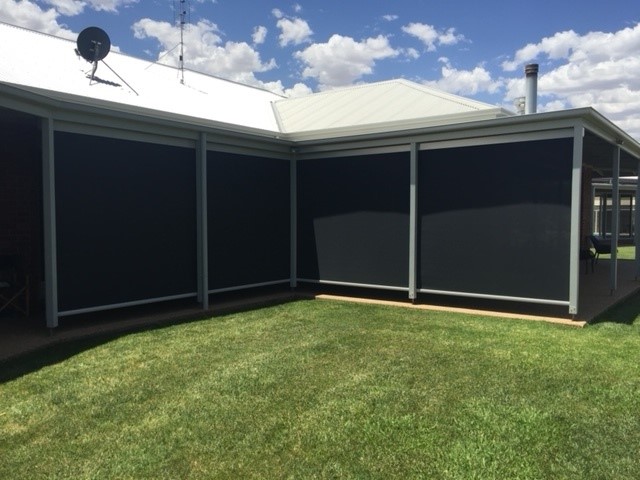

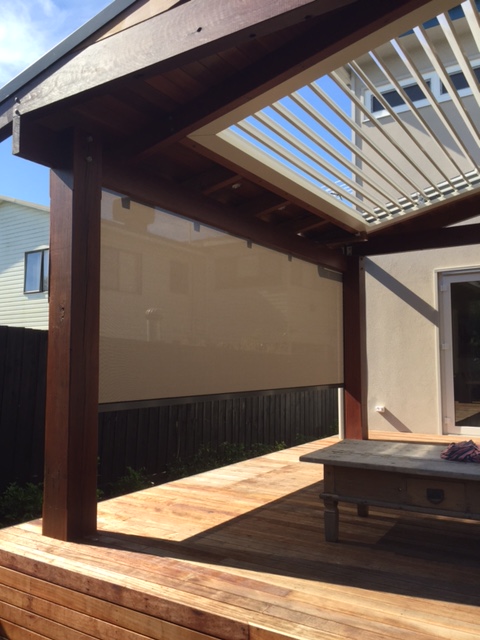

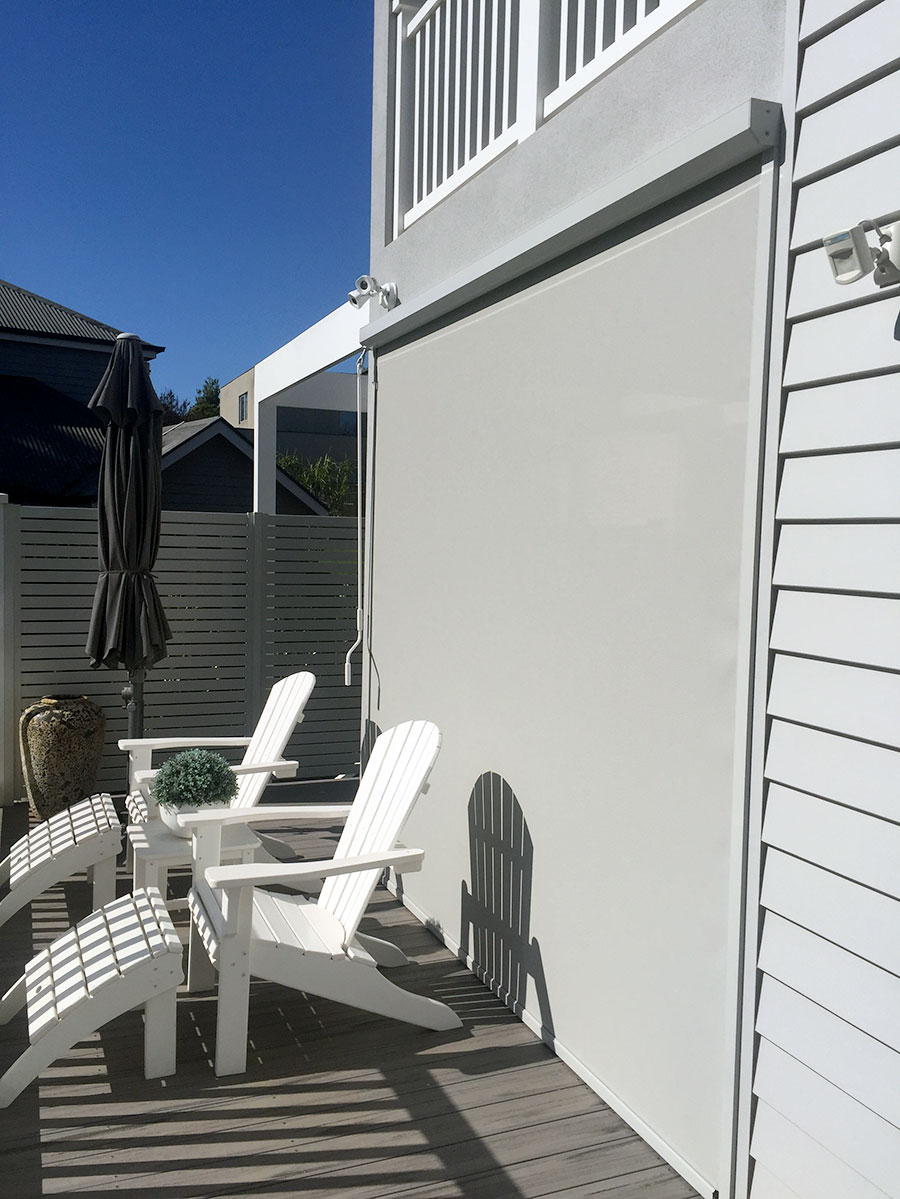

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Evolution Blinds Melbourne
