Vertiscreen

Vertiscreen is an exterior vertical blind sun protection system with a modern slim-line look.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

The VERTISCREEN range of products have been specifically designed for Australian conditions, offering the very best in Sun Protection. The stylish, aluminium powder-coated head-box offers grace and style to complement every home or office complex. The slim line design is offered in two head-box sizes – 95mm by 95mm, or 125mm by 125mm.

Features - Vertiscreen 95

  • Stylish Powder-coated Aluminum Head-Box  95mm x 95mm
  • The Vertiscreen Range offers a choice of 2 side channels (50mm or 100mm), or a Stainless Steel Wire Guide cable
  • Vertiscreen 95 Sizes from 0.65m- 4.50m wide, and drop from 0.65m – 2.7m
  • 63mm Galvanised Roller Tube with welded stream for added strength to 3m, 70mm thereafter
  • 3.5:1 Gearbox is standard - motorisation is an optional extra

Features - Vertiscreen 125

  • Stylish Aluminum Head-Box 125mm x 125mm
  • The Vertiscreen Range offers a choice of 2 side channels (50mm or 100mm), or a Stainless Steel Wire Guide cable
  • Vertiscreen 125 sizes from 0.65m - 5.4m wide, and drop from 0.65m – 3.3m
  • 78mm Galvanised Roller Tube with welded stream for added strength
  • 7:1 Gearbox is standard - motorisation is an optional extra

Colour Options

Standard Dulux Duralloy powder-coat colours are included in the price

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed of 37kph

Specifications

Vertiscreen 95

Width 0.65m ↔ 4.5m

Drop 0.65m ↔ 2.7m

Vertiscreen 95 Headbox


Vertiscreen 125

Width 0.65m ↔ 5.4m

Drop 0.65m ↔ 3.3m

      Vertiscreen Teardrop Bottom Rail

 Vertiscreen Standard 50mm side channel

Product Options

Somfy Motors

Altus 50 RTS 10/17


Wire Guide option

We also offer Stainless steel cables in lieu of the side channels. The stainless steel cables are secured top and bottom by Stainless steel fittings – one inside the head-box, the other secures the bottom end of the cable, by using either an L bracket which can be secured to a wall or verandah post, or by our Stainless Steel Deck Plate, securing the cable directly to the deck or flooring.

Vertiscreen Wire Guide Locking System

Vertiscreen Top Bush

Vertiscreen Bottom Bush

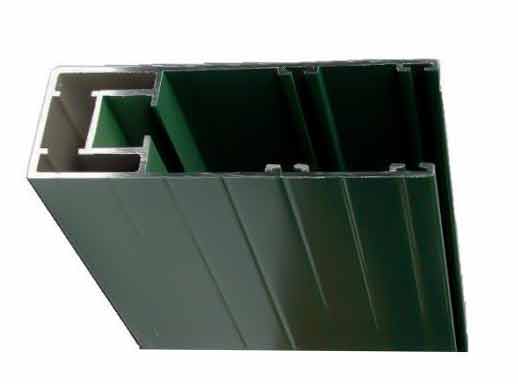

100mm wide side channel


Strap Runners


L Brackets


Deck Plates
