Italia Full Cassette and No Headbox Drop Arm Awnings

The Italia Full Cassette Awning is beautifully styled, and offers customers full protection for their chosen fabric  by enclosing it in the cassette box.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

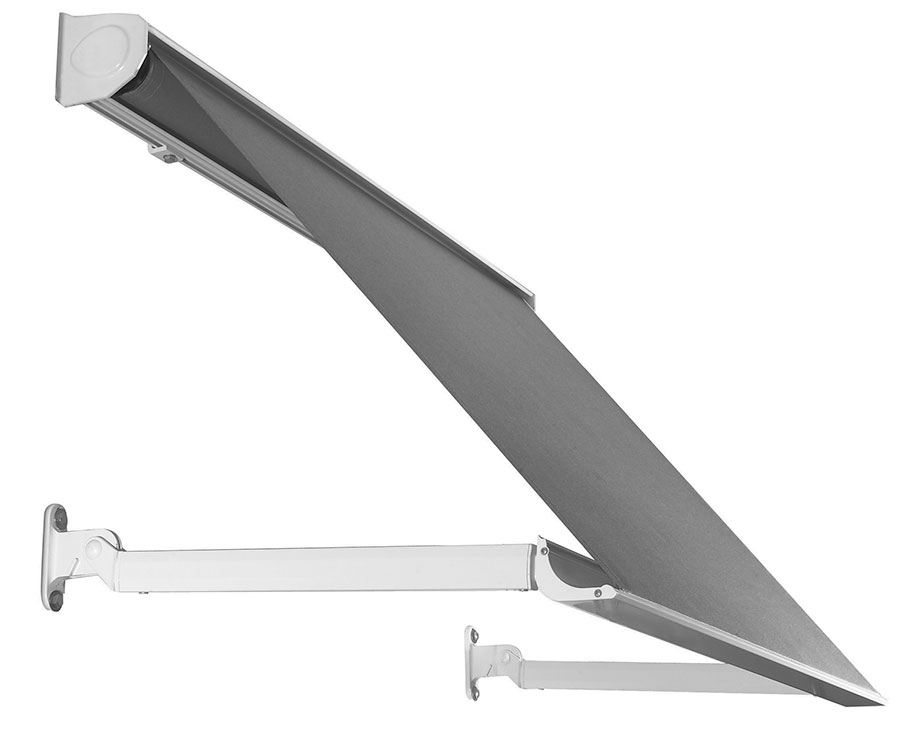

The Italia Full Cassette model uses spring loaded arms to ease the fabric back into the fully enclosed cassette. The operation of the awning is both smooth and effortless.  As the awning closes, the sculptured bottom rail fits snugly into the top cassette box, to form a weather-proof enclosure to protect the fabric.

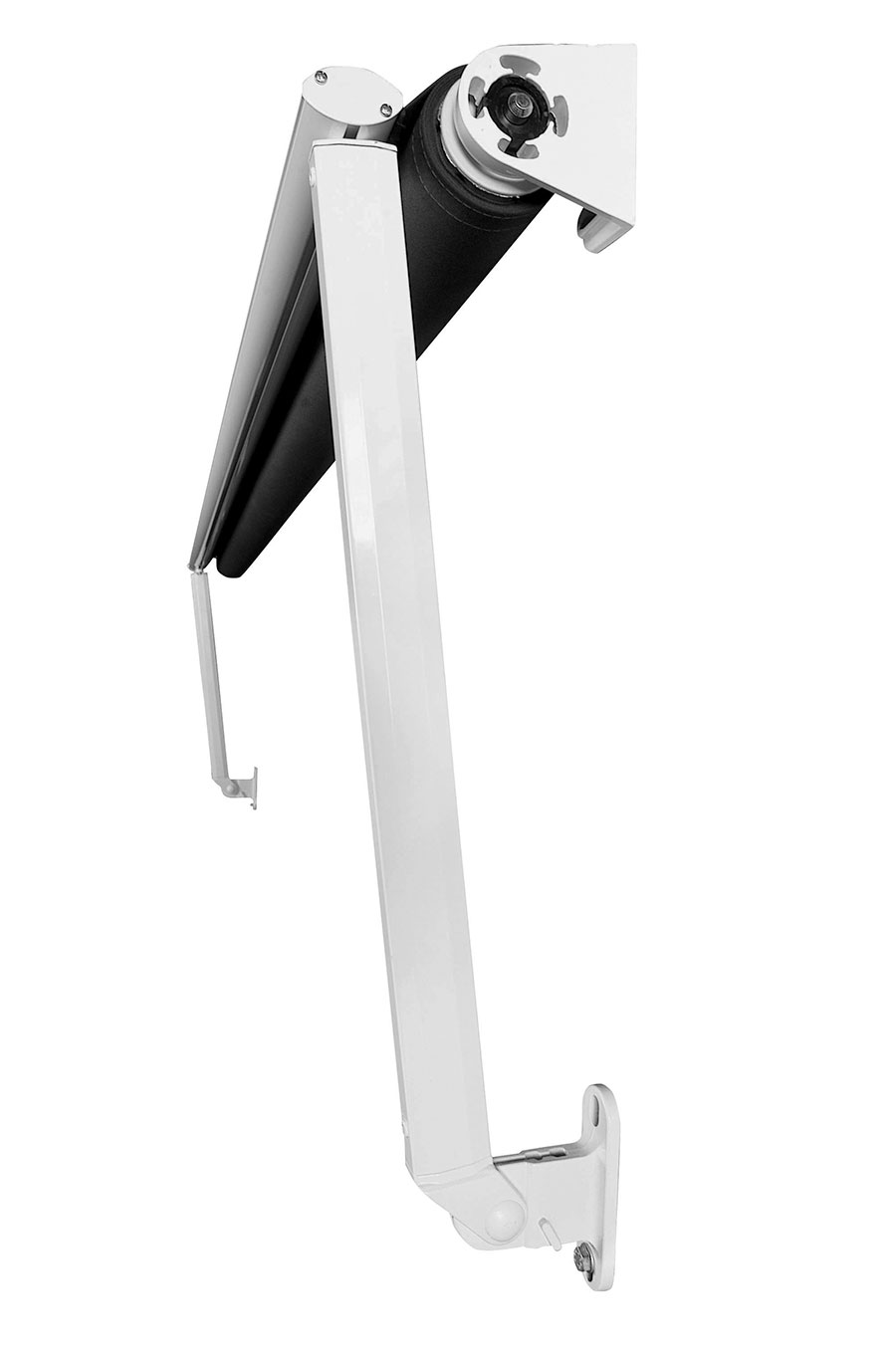

The style of the Italia awning can also be seen without the Full Cassette features.  Using the same spring-loaded arms, and a different bottom rail, the Italia Spring Arm Awning with no headbox can be manufactured to suit most window sizes.

Features - Italia Full Cassette Model

  • Full Cassette model offers protection for the fabric by enclosing it in the cassette box
  • The cassette headbox, mounting brackets and arms are made from aluminium, and are powder-coated to enhance the appearance of the awning
  • Unique fully closing Bottom Rail
  • Bottom Rail is made from extruded aluminium and is also powder-coated
  • 7:1 Gearbox is standard - Motorisation is available at an additional cost
  • If manually operated, the gearbox can be on either the outside or inside of the brackets
  • 70mm Galvanised Roller Tube with welded stream for added strength
  • Arms sizes from 600mm - 1800mm to suit drops from 1200mm - 3600mm
  • Maximum width 5m
  • Easy and quick installation

Features - Italia No Headbox Model

  • Open style awning
  • The mounting brackets, arms and bottom rail are made from aluminium, and are powder-coated to suit your needs
  • Oval Bottom Rail
  • 7:1 Gearbox is standard - Motorisation is available at an additional cost
  • If manually operated, the gearbox can be on either the outside or inside of the brackets
  • 70mm Galvanised Roller Tube with welded stream for added strength
  • Arms sizes from 600mm - 1800mm to suit drops from 1200mm - 3600mm
  • Maximum width 5m
  • Easy and quick installation

Colour Options

Standard Dulux Duralloy powder-coat colours are included in the price

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed of 37kph

Specifications

Width 1m ↔ 5m

Arm Size 0.6m ↔ 1.8m (can be cut to any size)

Drop 1.2m ↔ 3.6m


Italia Arms

Italia Spring Arm Components


Italia Arm Profile



Italia Cassette Headbox Profile


Italia Full Cassette Bottom Rail Profile



Italia No Headbox Bottom Rail Profile



Product Options

Somfy Motors

Full Cassette Model - Orea 50 RTS 25/17

No Headbox Model - Altus 50 RTS 25/17


Photo courtesy of Northshore Canvas Blinds & Awnings Sydney

Photo courtesy of Northshore Canvas Blinds & Awnings Sydney
