Giotto & Giotto Plus Fabric Tension System

The GIOTTO Fabric Tension System awning has been specifically designed to be fitted over Glass Roofs, Conservatories, or Pergolas to assist in heat reduction by shading the glass, or the deck.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Designed as a sun-screen product, the fabric is designed to be taut at every stage of the movement of the front bar - whether the awning is fully extended, or stopped somewhere between fully closed and fully extended.

The Giotto as a single awning has a maximum width of 5m, and a maximum projection of 4m. If wider spans are to be covered, Giotto also comes in a Twin Version (connected by a common centre track) - two screens each with its own motor, to achieve the optimum level of shading as each screen is operated independently.

The GIOTTO PLUS Fabric Tension System awning is fitted with powder-coated aluminium front legs, making this system versatile for private or public installations. It can be affixed to an existing wall, roof eave, or garage wall etc.  The GIOTTO PLUS as a single awning has a maximum width of 5m, and a maximum projection of 4m, or a Twin Version (connected by a common centre track) is available for wider applications up to 10m.

Features - Giotto

    • The GIOTTO Fabric Tension System awning has been specifically designed to be fitted over Glass Roofs, Conservatories or Pergolas, to assist in heat reduction by shading the glass or the deck

    • Fabric is taut when the system is fully open, closed or somewhere in between

    • Maximum 5m wide with a 4m projection

    • Giotto is designed to be run either Horizontally or Vertically

    • 78mm Galvanised Roller Tube with welded stream for added strength

    • Deep section front bar encloses the Tension Spring mechanism

    • The Giotto is always motorized – Gear-Box drive is not available

    • Standard mounting brackets give 80mm clearance over the mullion. Extra Height brackets giving a 170mm clearance are also available.

    • Side Fit brackets and Sideways Adjustable brackets are an available option

    • Twin Models are available – each screen has its own motor and is operated independently


    Features - Giotto Plus

    • The GIOTTO Plus Fabric Tension System awning has been specifically designed to be fitted to powder-coated aluminium front legs, thus making this system versatile for private or public installations

    • Fabric is taut when the system is fully open, closed or somewhere in between

    • Maximum 5m wide with a 4m projection

    • 78mm Galvanised Roller Tube with welded stream for added strength

    • Deep section front bar encloses the Tension Spring mechanism

    • The Giotto is always motorized – Gear-Box drive is not available

    • The GIOTTO PLUS can be fixed to an existing wall, roof eave or garage wall etc, and rests on two aluminium posts

    • Twin Models are available – each screen has its own motor and is operated independently

Colour Options

Standard Dulux Duralloy powder-coat colours are included in the price

Wind Rating

Wind Class 1 (European)/Beaufort Force 4 (Australian)

Maximum wind speed of 27kph

Specifications

Width 1.25m ↔ 5m

Projection 1m ↔ 4m

Giotto Cassette Profile

Giotto Side Channel Profile


Giotto Standard Fixing Bracket


Product Options

Somfy Motors

Altus 50 RTS 40/17 for awnings up to 3m drop

Altus 50 RTS 50/12 for awnings over 3m drop


Twin Screen


Side Fix brackets


Pitch Adjusting Fixing brackets

Extra Height brackets - maximum 200mm (use in conjunction with Pitch Adjusting Fixing Bracket)

Sideways Adjustable Fixing brackets for side shifting of the tracks

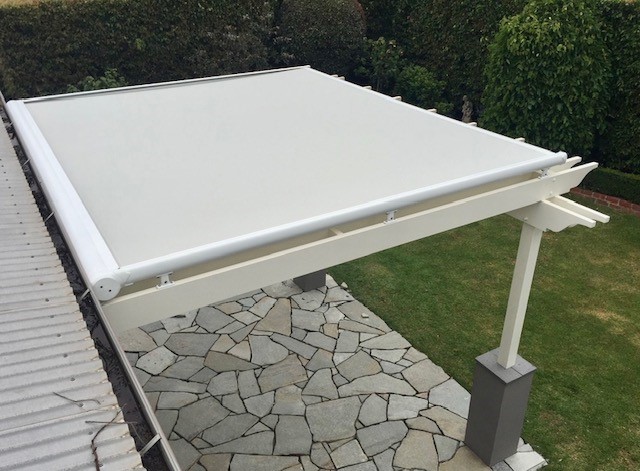

Photo courtesy of Evolution Blinds Melbourne

Photo courtesy of Blinds In Mind Melbourne

Photo courtesy of Blinds In Mind Melbourne
