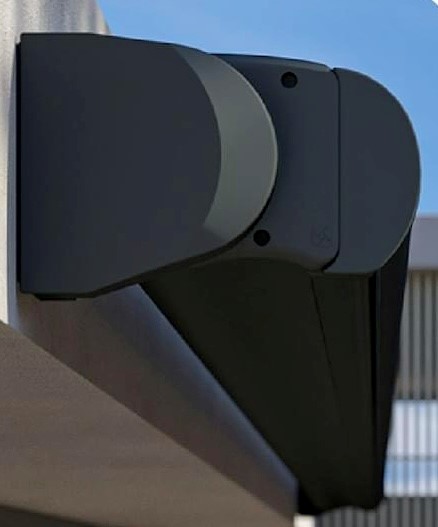

Base Plus Full Cassette Folding Arm Awning

Base Plus is a premium full cassette awning with appealing smooth lines.

The Base Plus is a fully enclosed cassette system, and its low profile is ideal for difficult spaces. BASE-PLUS models MUST be end fixed – no intermediate fixing is available.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Features

  • Full Cassette awning offering the ultimate protection of the awning, components and fabric
  • 70mm Galvanised Roller Tube with welded stream for added strength
  • 11:1 Gear-box is standard – motorisation is optional
  • Arm sizes from 1.6m to 3.1m
  • Awning width from 1.91m to 5m
  • Pitch adjustment from 5 to 75 degrees is possible with Wall mounting
  • Pitch adjustment from 15 to 90 degrees is possible with Ceiling mounting
  • The Pitch of the awning is set at installation
  • The Base Plus MUST be end fixed – no intermediate fixing is available

Colour Options

Standard colour is White.  Other Dulux Duralloy powder-coat colours are available at an additional cost.

WHITE

Wind Rating

Awnings up to 2.6m projection - Wind Class 2 (European)/Beaufort Force 5 (Australian).  Maximum wind speed 37kph.

Awnings with 3.1m projection - Wind Class 1 (European)/Beaufort Force 4 (Australian).  Maximum wind speed 27kph.

Specifications

Width 1.91m ↔ 5m

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m

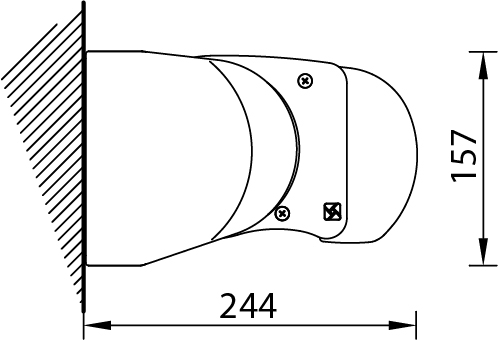

                 Wall/Face Fix Installation

Wall/Face Fix Installation with 75 degree pitch

       Ceiling/Top Fix Installation

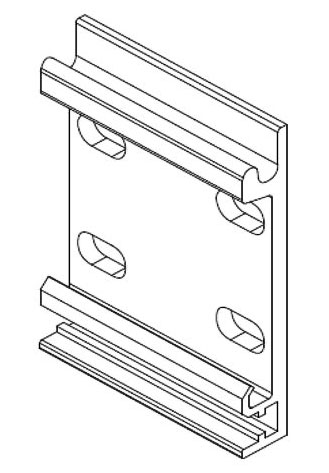

Base Plus Wall/Face Fix & Ceiling/Top Fix Bracket


Product Option

Somfy Motor

Orea 50 RTS 40/17


Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Sensor RTS with LED feedback in White



Reverse Fascia 10 & 22 degree brackets


Rafter brackets 125mm or 200mm

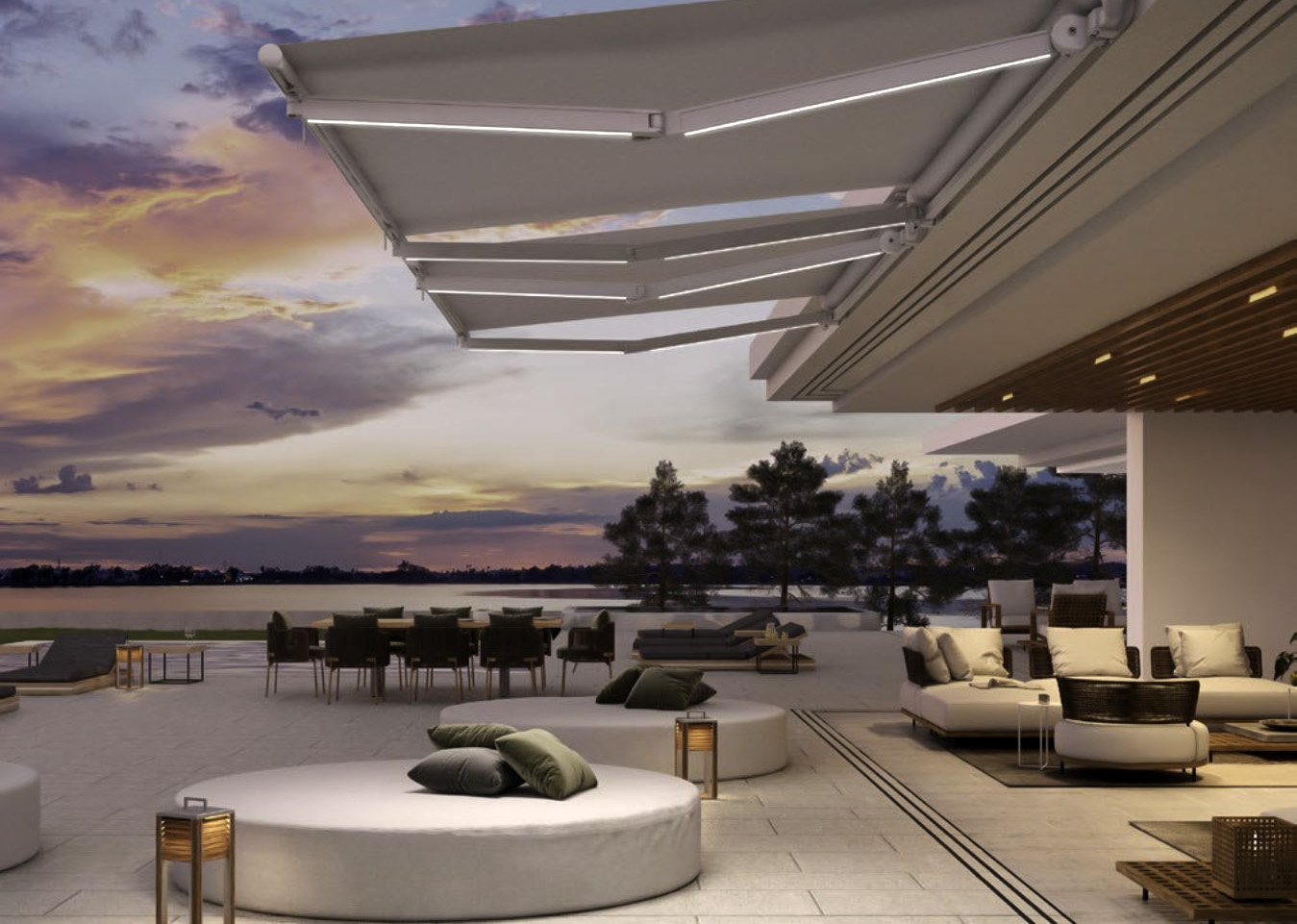

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.

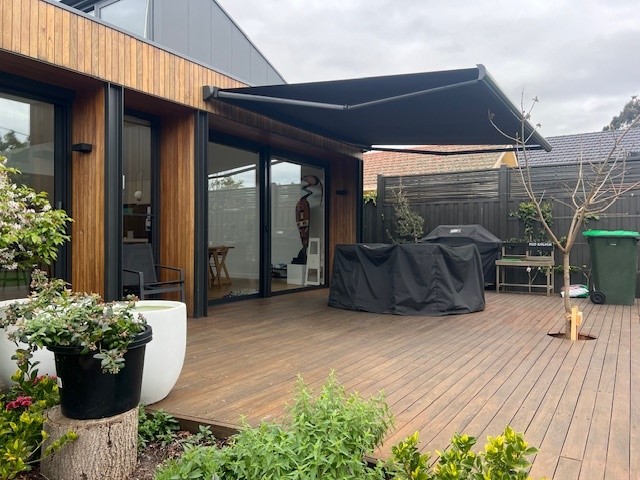

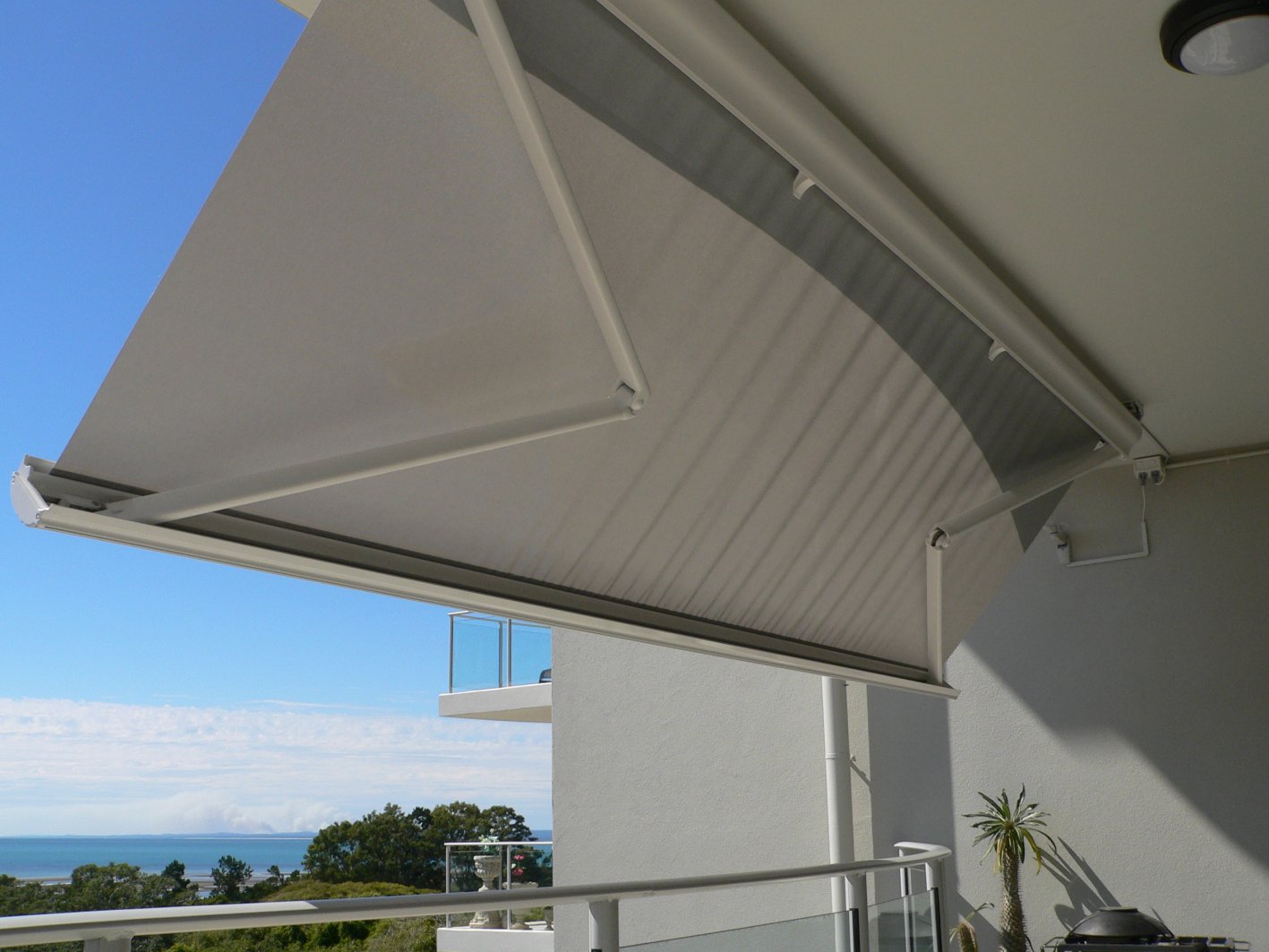

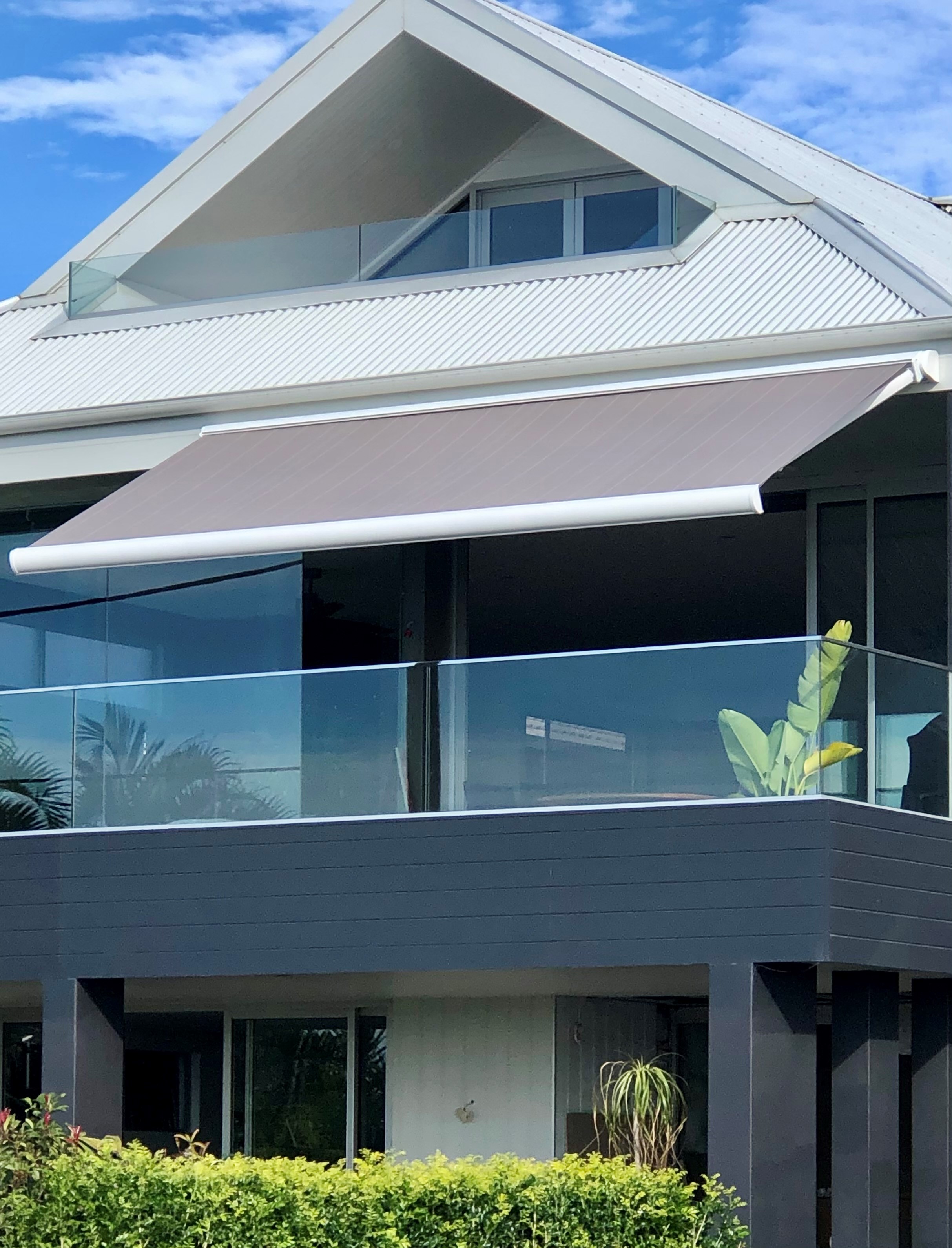

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville
