Australia Semi-Cassette Folding Arm Awning

Semi-cassette awning with sylish wide front bar and extruded powder-coated aluminium hood to compliment one of our most popular awnings.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Features

  • 40mm x 40mm Square Bar
  • 70mm Galvanised Roller Tube with welded stream for added strength for awnings up to 5m width, 78mm thereafter
  • 7:1 Gear-box is standard – Awnings over 6m should be motorized
  • Heavy duty arms with stainless steel chain
  • Awning width from 1.946m to 7.36m
  • Projection from 1.6m to 3.6m
  • Customer adjustable pitch control on each arm is an optional extra – Adjustment range 5 degrees to 60 degrees
  • Modern styled heavy extruded 2 piece aluminium hood and extended front bar
  • Gives great sun protection when needed and can be retracted when required

Colour Options

Colour options are White, Ivory, Silver Grey and Black Satin. Other standard Dulux Duralloy powder-coat colours are available at an additional cost.

WHITE   BLACK   IVORY   SILV/GREY

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed 37kph

Specifications

Width 1.946m ↔ 7.036m

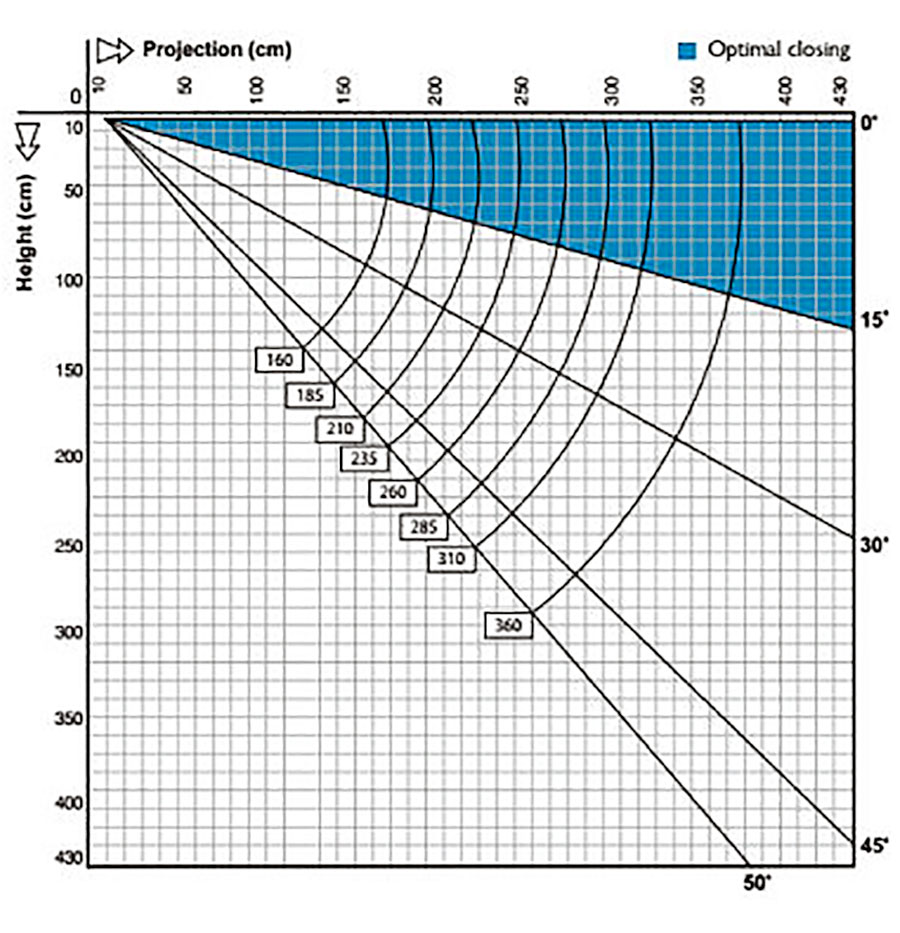

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m

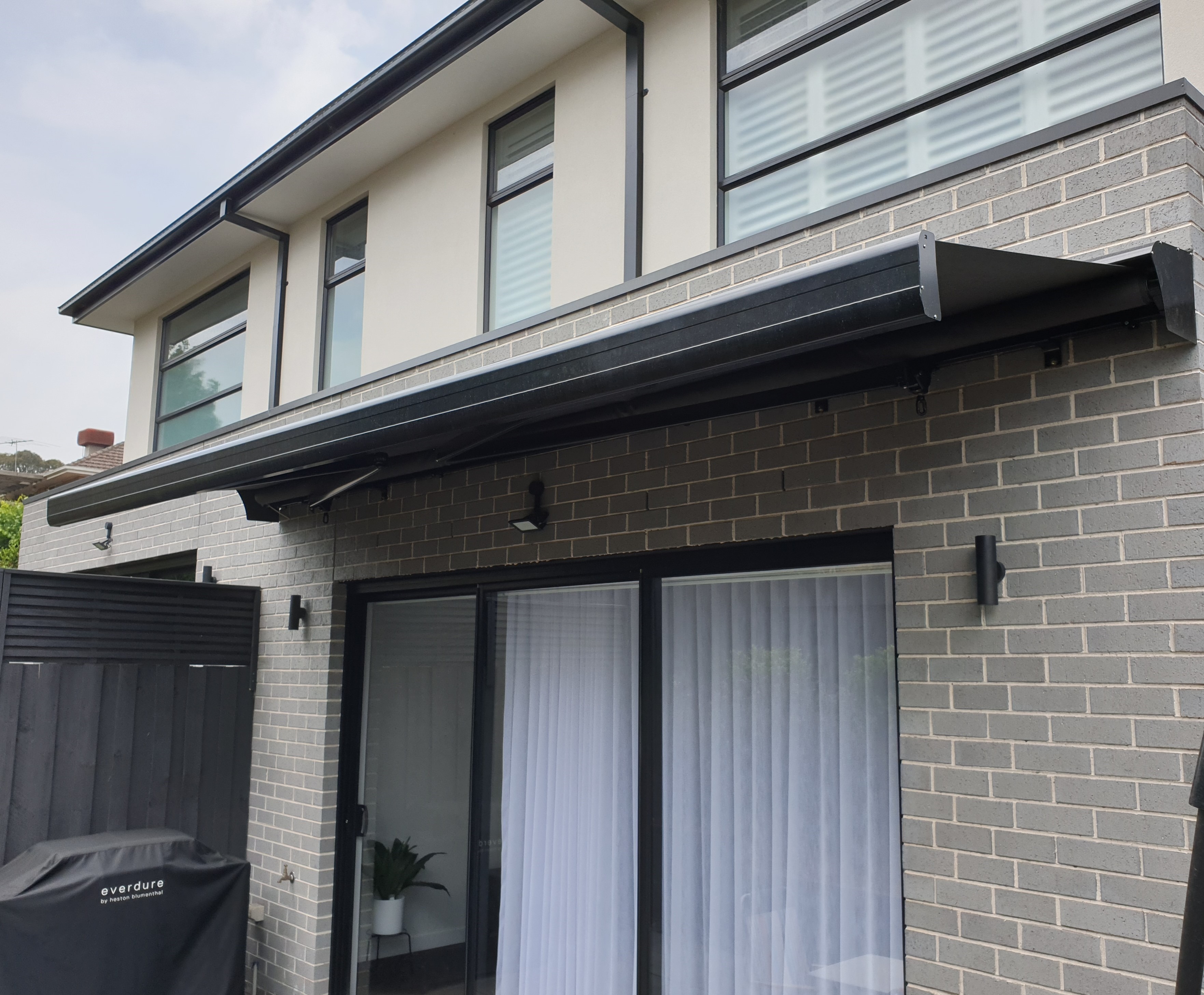

          Australia Semi-Cassette Wall Fix


         Australia Wall Fix with Hood

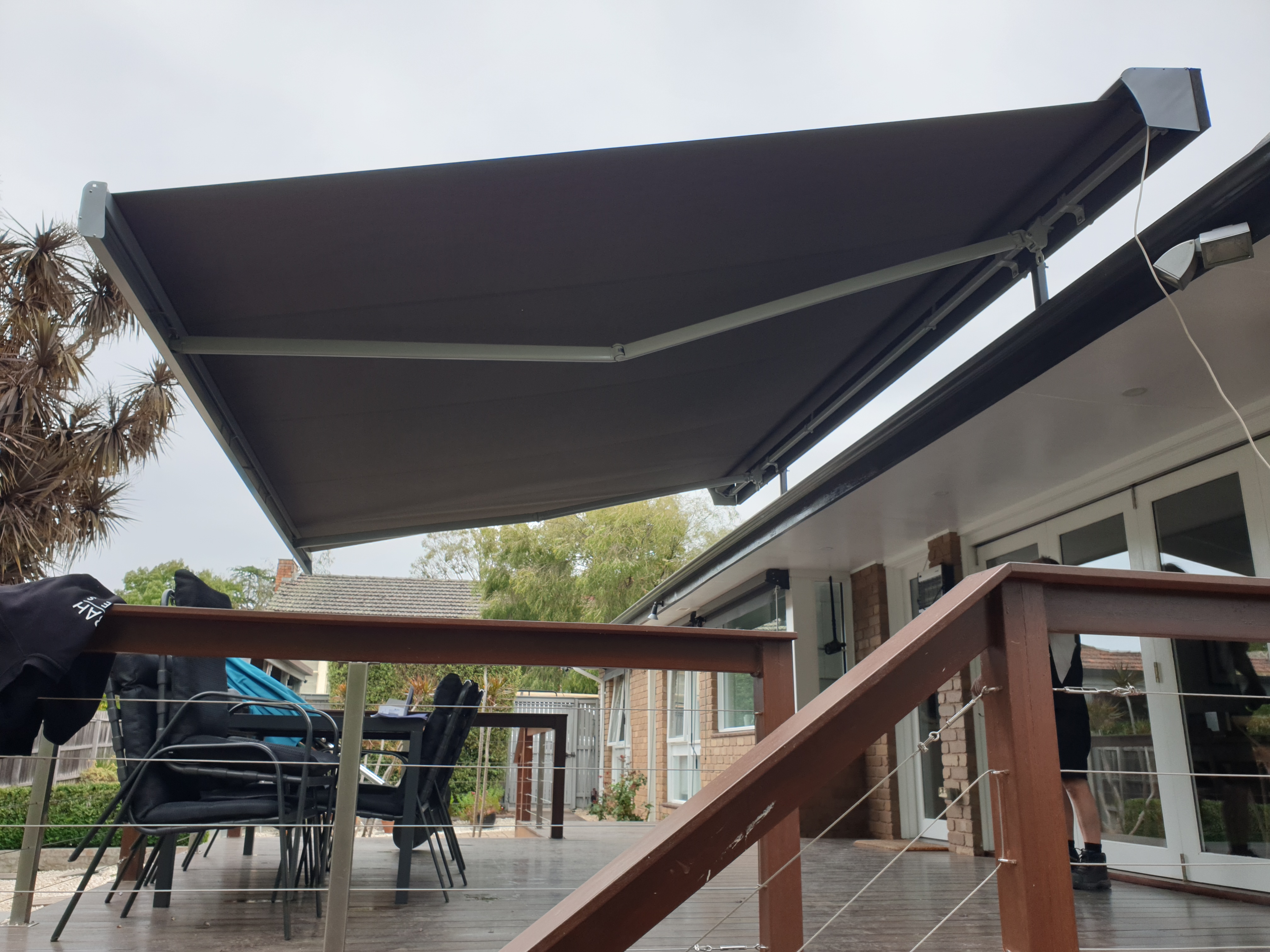

Australia Ceiling Fix with Wide Front Bar


Australia Face/Wall Fix US400 Bracket

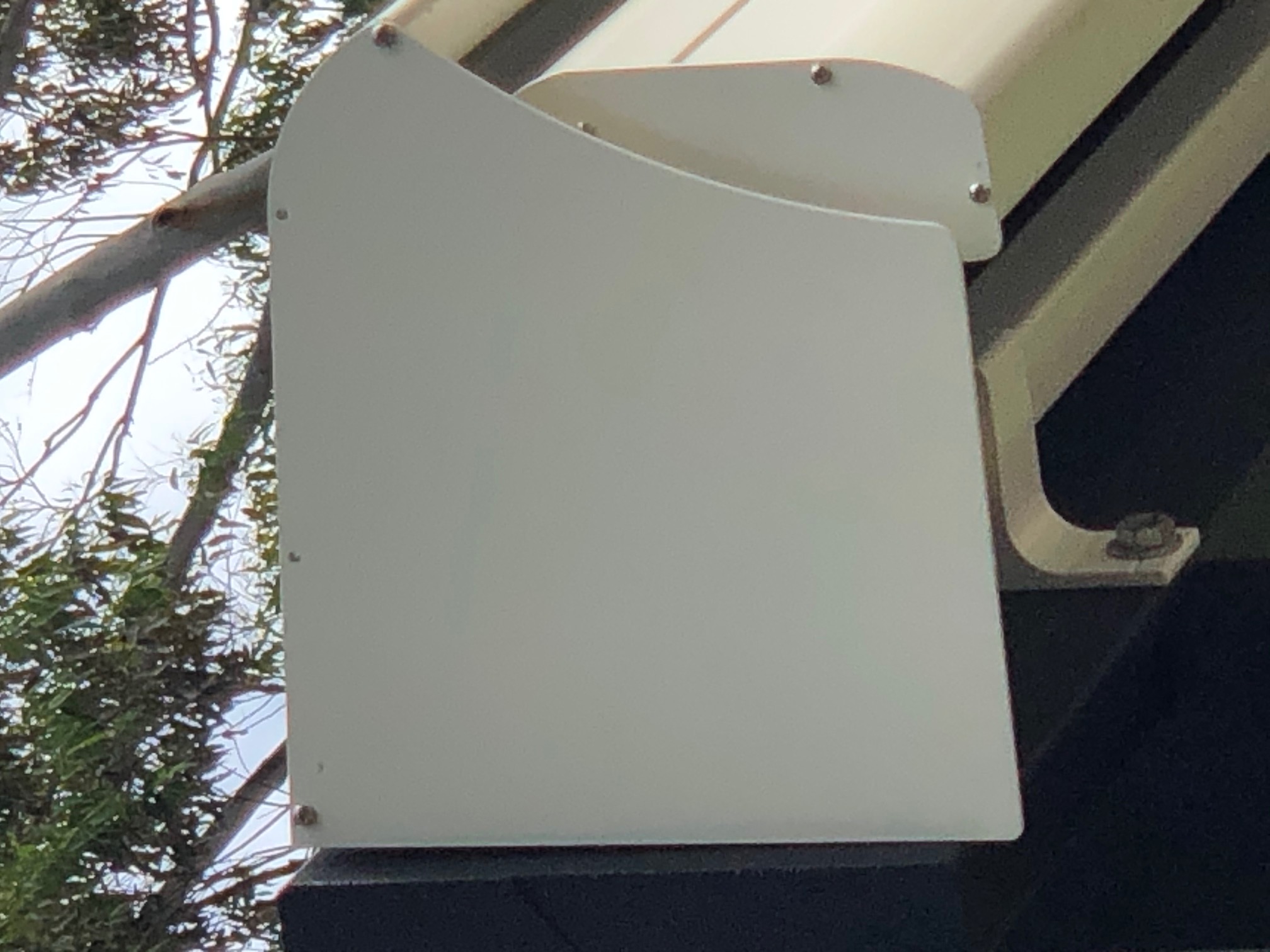

Australia Semi-Cassette Hood Bracket

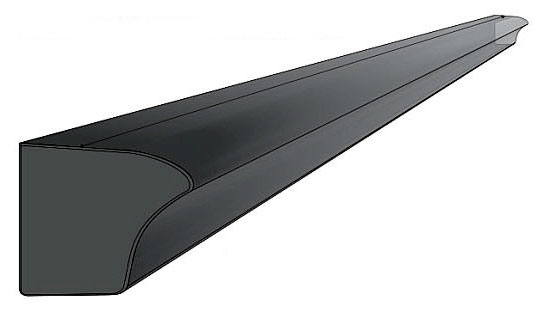

Australia Semi-Cassette Hood Profile

Australia Semi-Cassette Front Bar Profile


Product Options

Somfy Motors

Altus 50 RTS 40/17 for 2 arm awning

Altus 50 RTS 50/12 for 3 arms up to 2.1m projection

Altus 60 RTS 55/17 for 3 arms over 2.1m projection

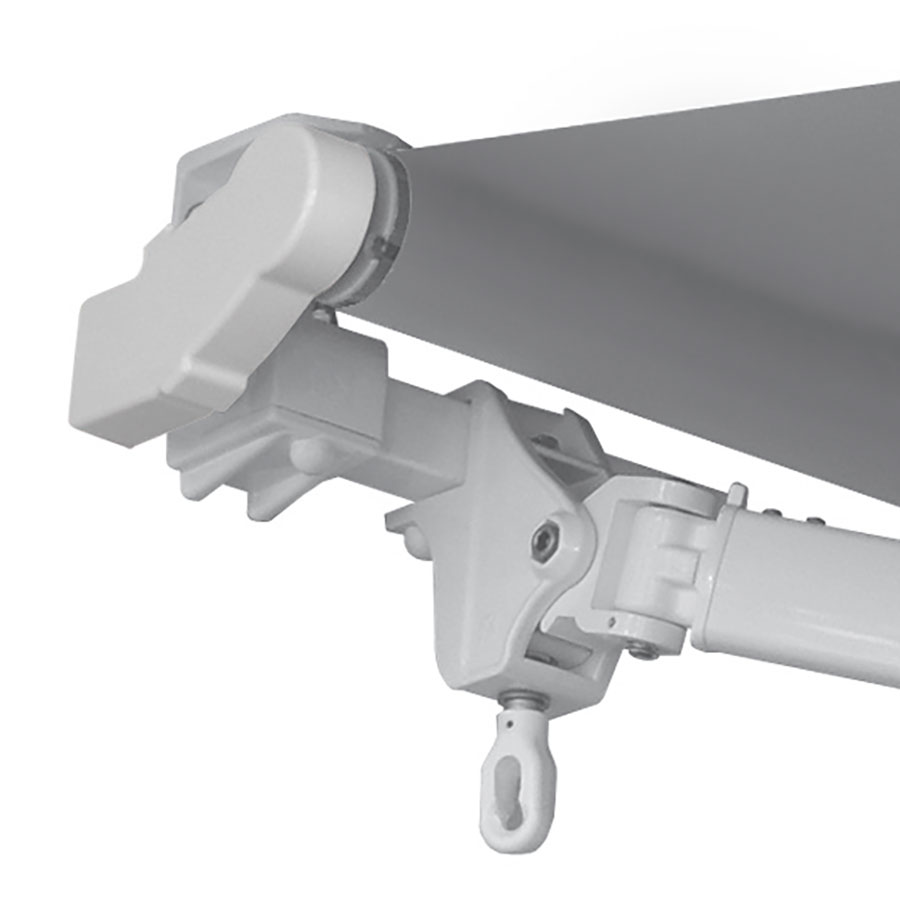

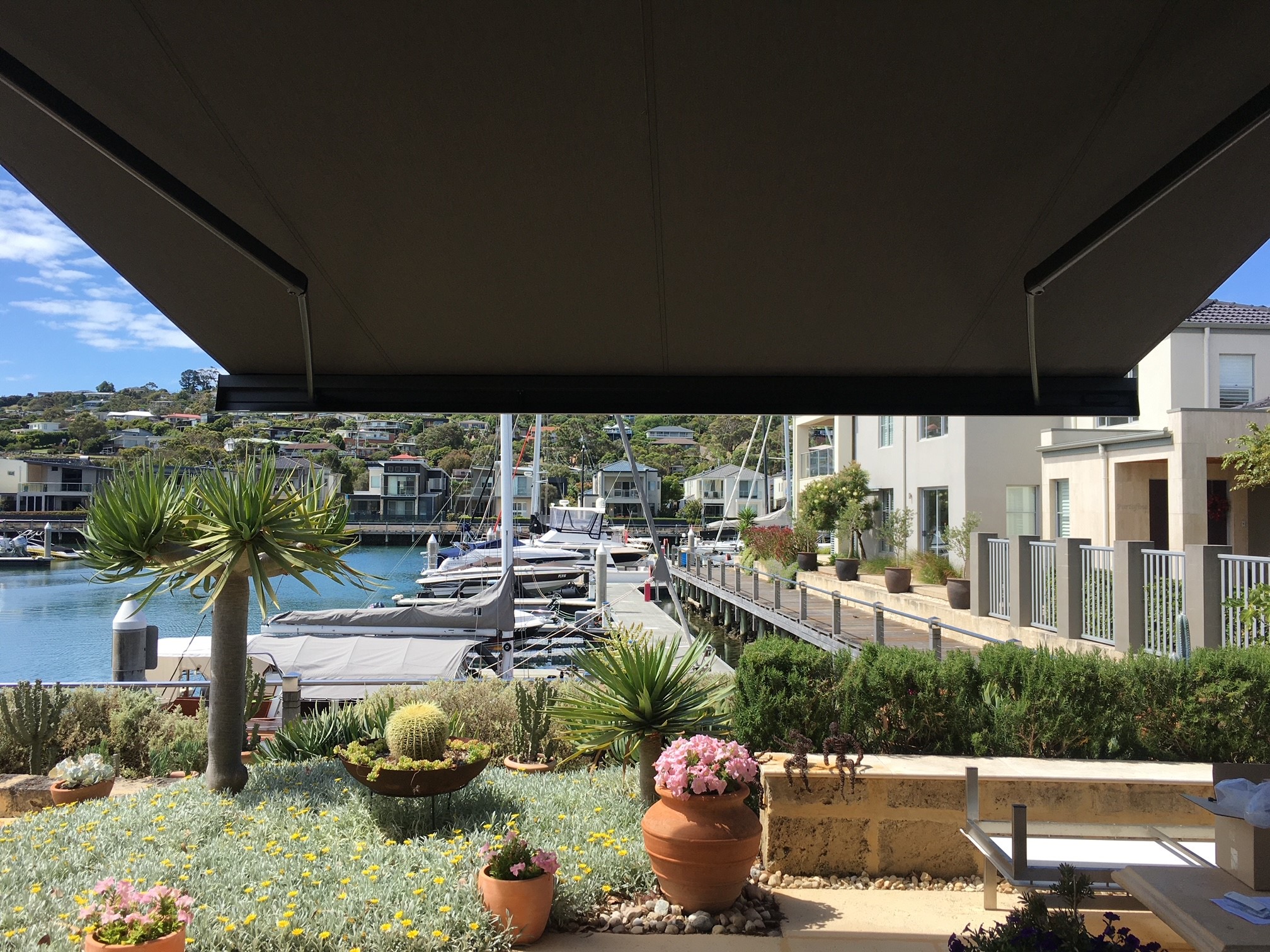

Customer Adjustable Pitch Control

Adjustment range between 5-60 degrees

Top Fix Brackets

Top/Ceiling Fix Square bar fixing bracket


Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Sensor RTS with LED feedback in White


Fascia 10 & 22 degree brackets


Rafter brackets 125mm or 200mm


Extendable Front Valance

Available for awnings up to 6m in width.  Drop up to 1.2m using hemmed acrylic fabric and 2m using unhemmed acrylic fabric.

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.

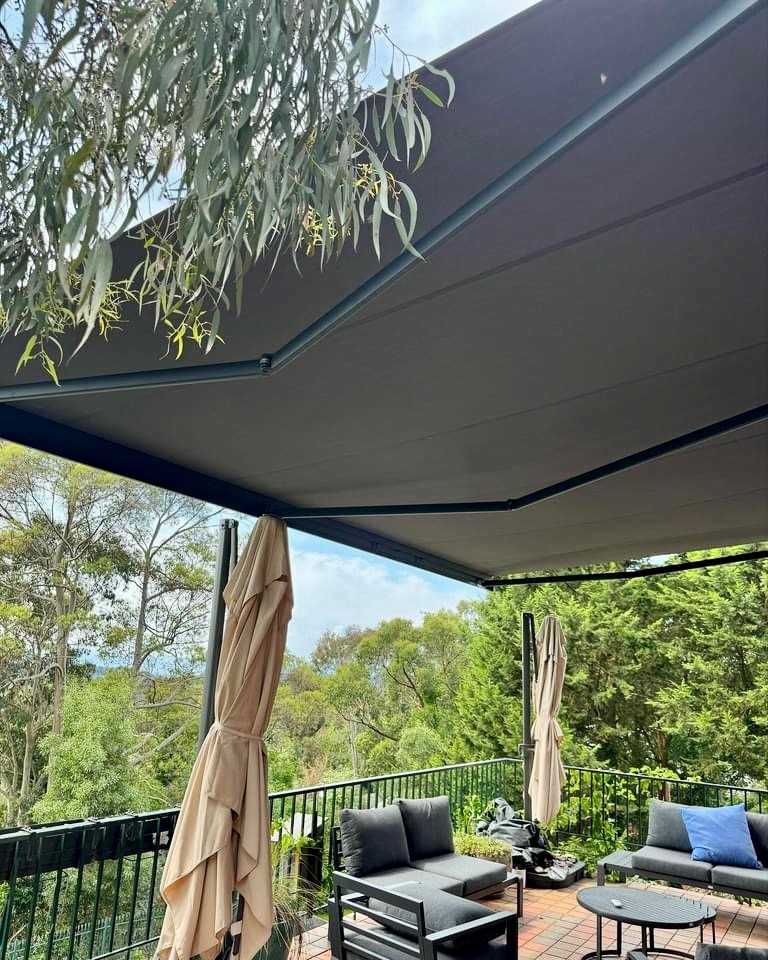

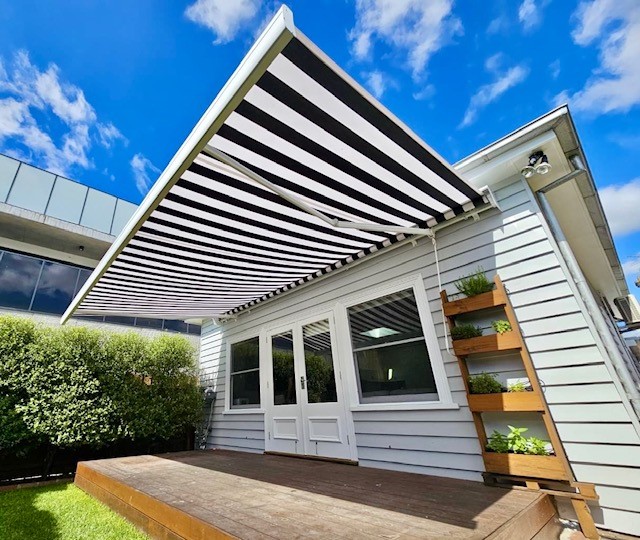

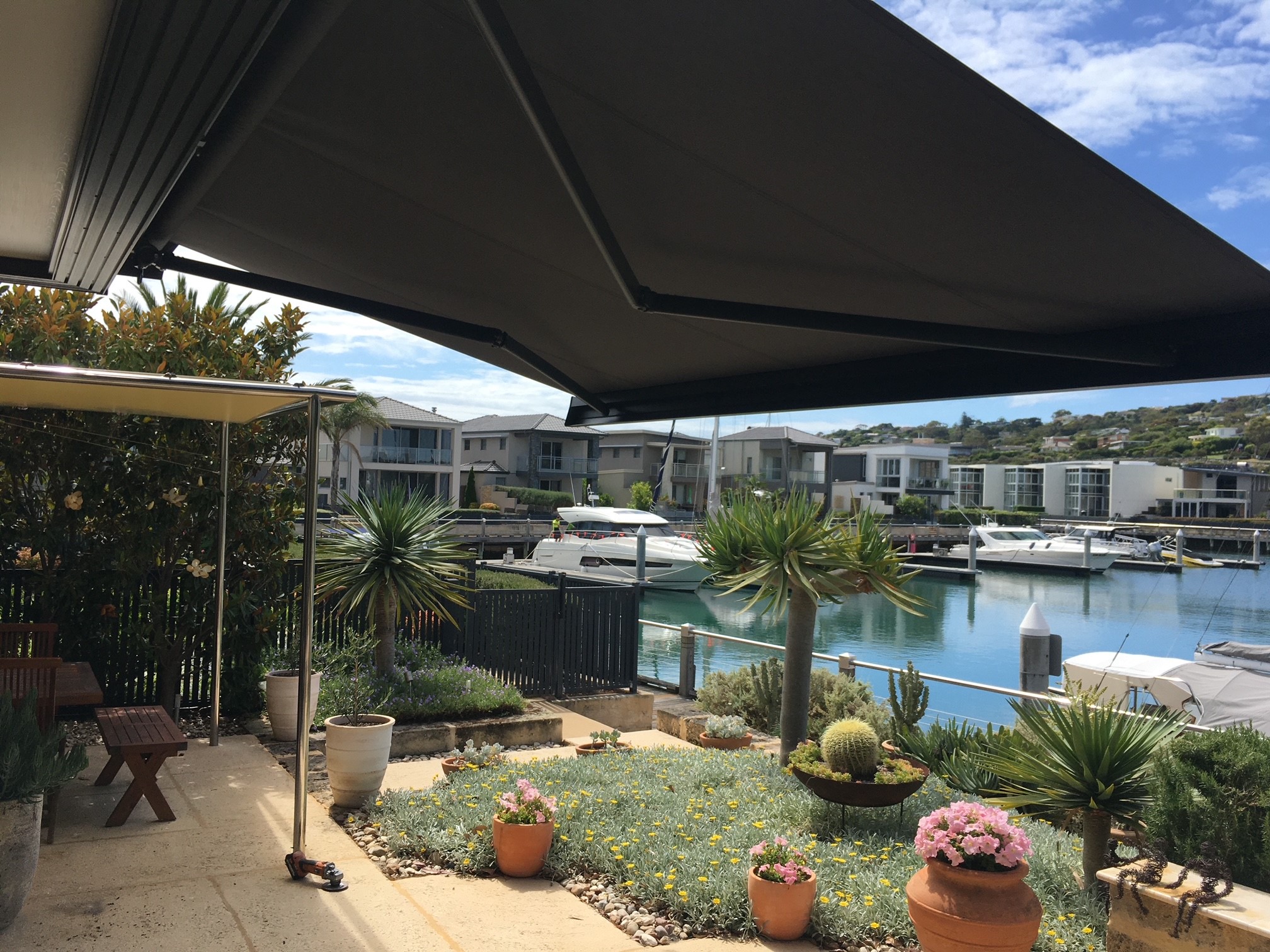

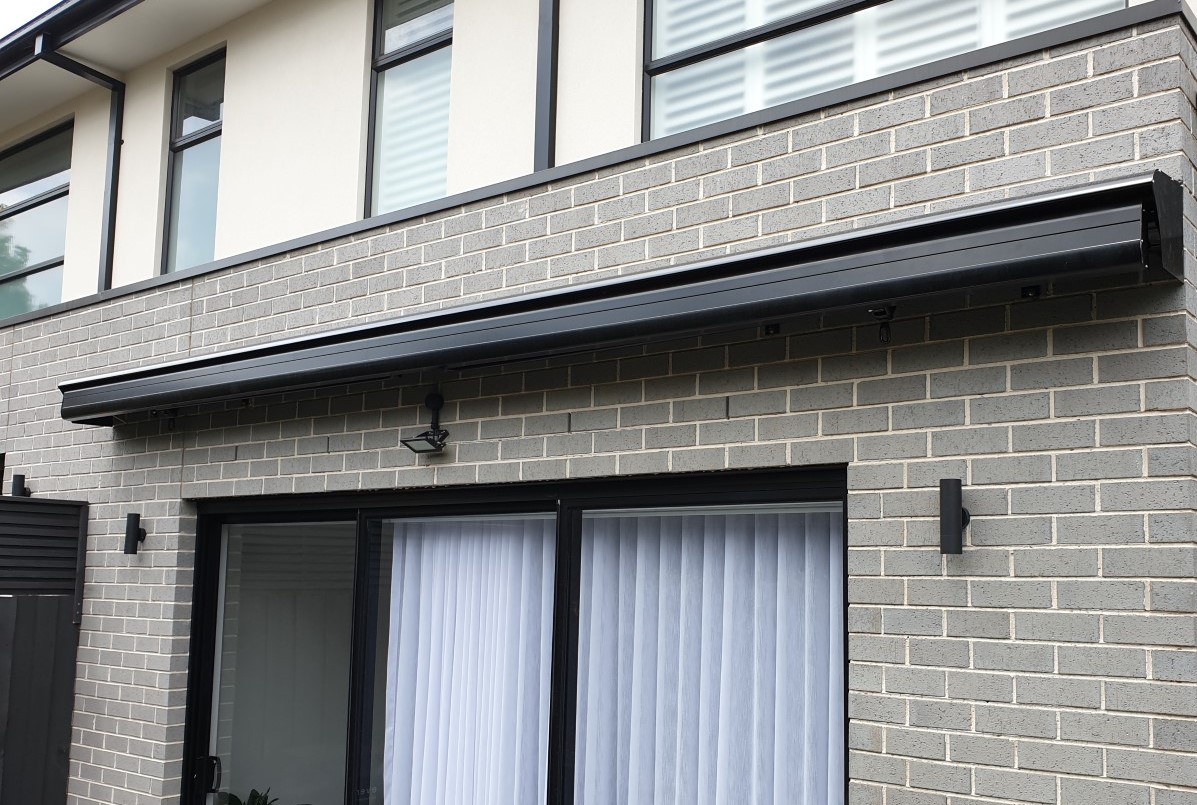

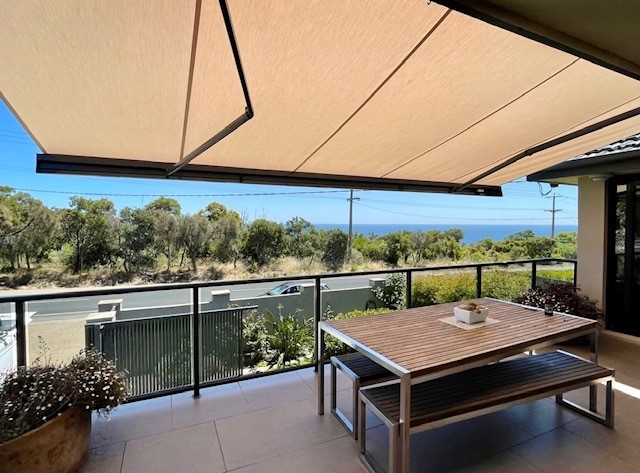

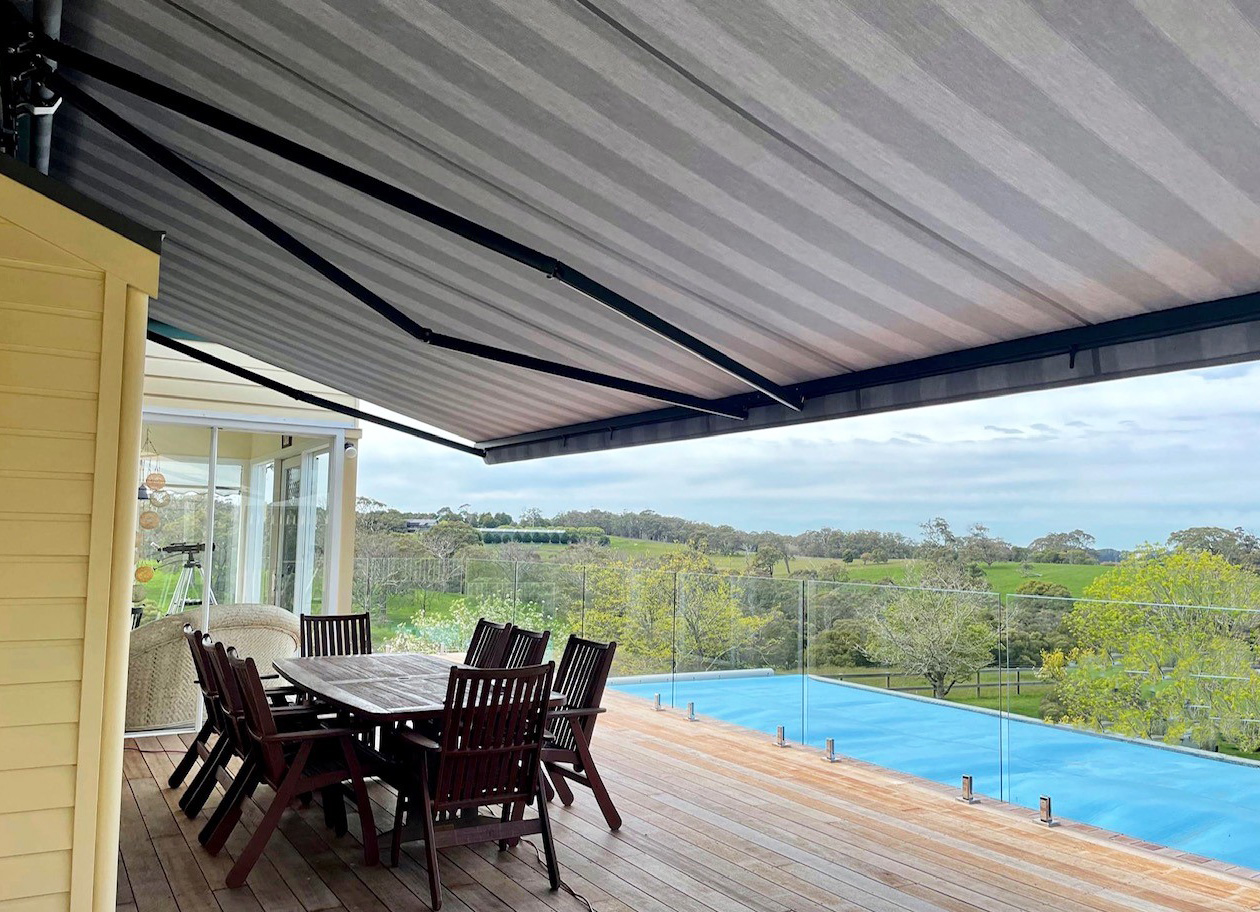

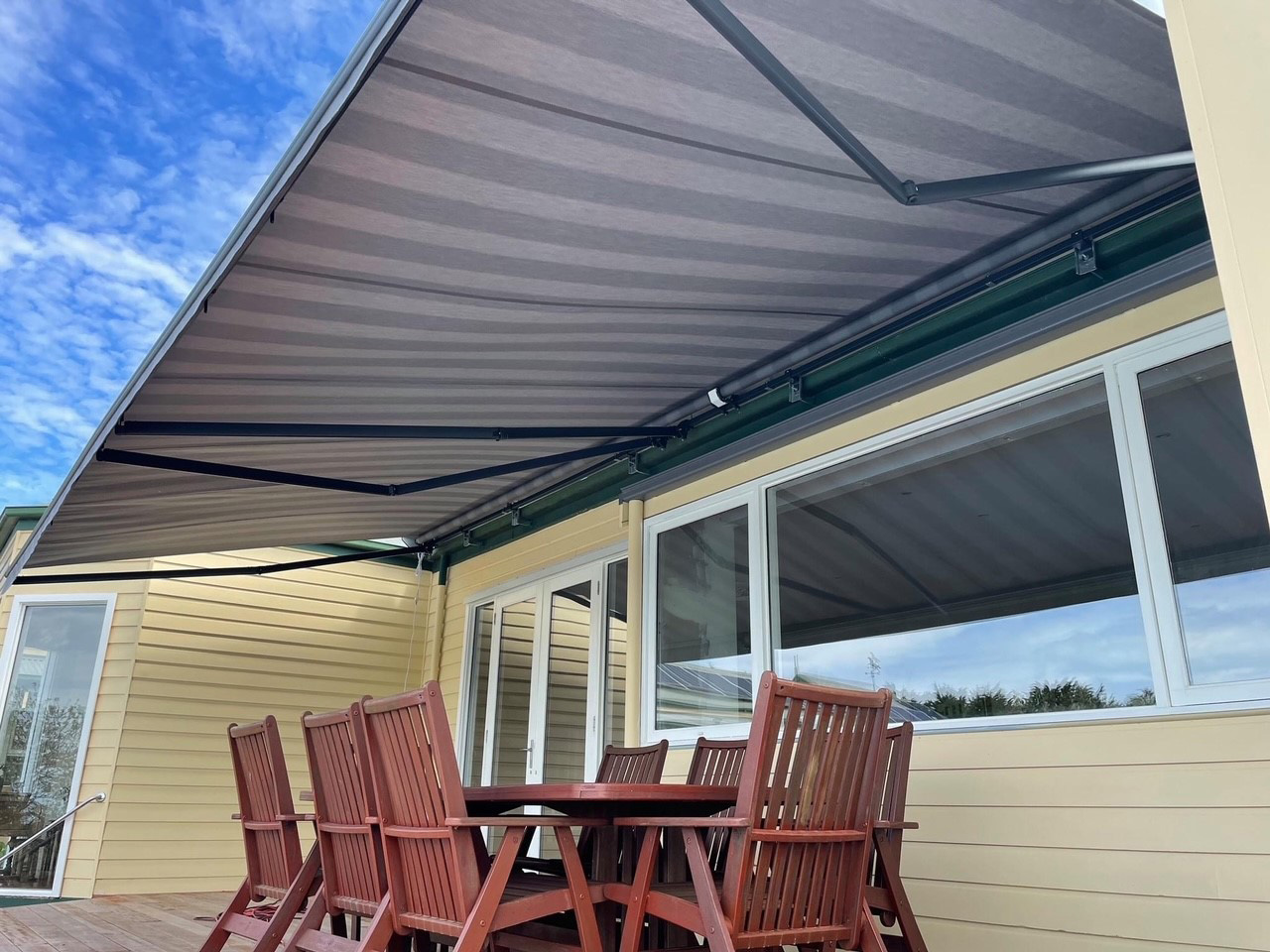

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne

Photo courtesy of Coolabah Shades Melbourne
