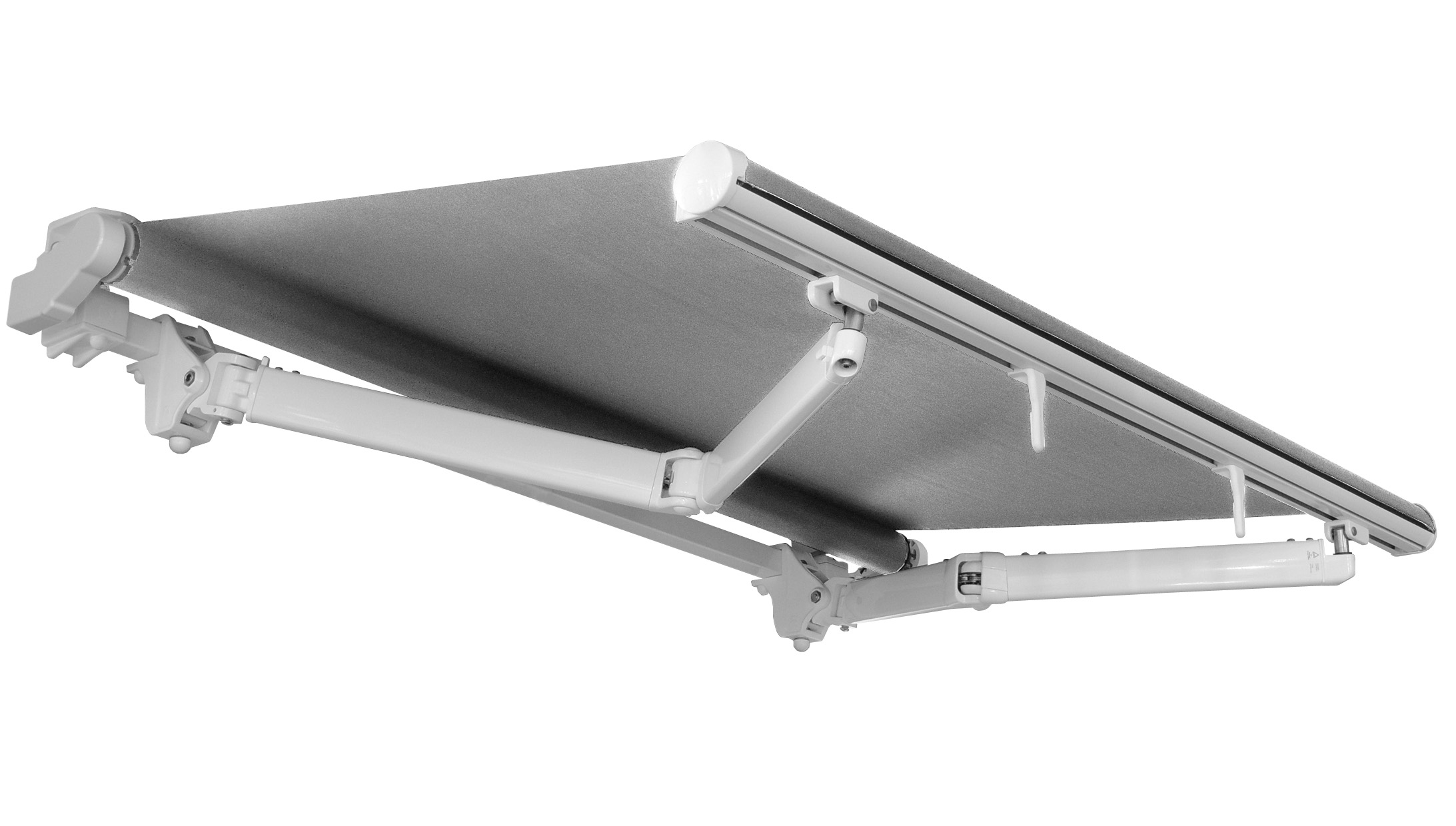

Australia R-90 and Pitch Control Folding Arm Awning

The Australia R-90 Folding Arm awning with or without Pitch Control, is an immensely strong system.  For domestic and commercial installations, it is one of our most popular awnings which is made to suit Australian conditions.



5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Features

  • 40mm x 40mm square bar
  • 70mm Galvanised Roller Tube with welded stream for added strength for awnings up to 5m, 78mm thereafter
  • 7:1 Gearbox is standard – awnings over 6m should be motorised
  • Styled heavy extruded front bar.
  • Heavy duty arms with stainless steel chain
  • Awning width from 1.91m to 12m
  • Projection from 1.6m to 3.6m
  • Customer adjustable pitch control on each arm is an optional extra – adjustment range 5 degrees to 60 degrees
  • Extendable front valance is available as an option (1.2m drop using hemmed acrylic or 2m using unhemmed acrylic)
  • Gives great sun protection when needed and can be retracted when required

Colour Options

Colour options are White, Ivory, Silver Grey and Black Satin.  Other standard Dulux Duralloy powder-coat colours are available at an additional cost.

WHITE   BLACK   IVORY   SILV/GREY

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian).

Maximum wind speed 37kph.

Specifications

Width 1.9m ↔ 12m

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m


           Australia R-90 Wall Fix Installation


    Australia R-90 Ceiling Fix Installation


  Australia Pitch Control Wall Fix Installation

Australia Pitch Control Ceiling Fix Installation


Australia Face/Wall Fix US400 Bracket


Product Options

Somfy Motors

Altus 50 RTS 40/17 for 2 arm awning

Altus 50 RTS 50/12 for 3 & 4 arms up to 2.1m projection

Altus 60 RTS 55/17 for 3 & 4 arms over 2.1m projection

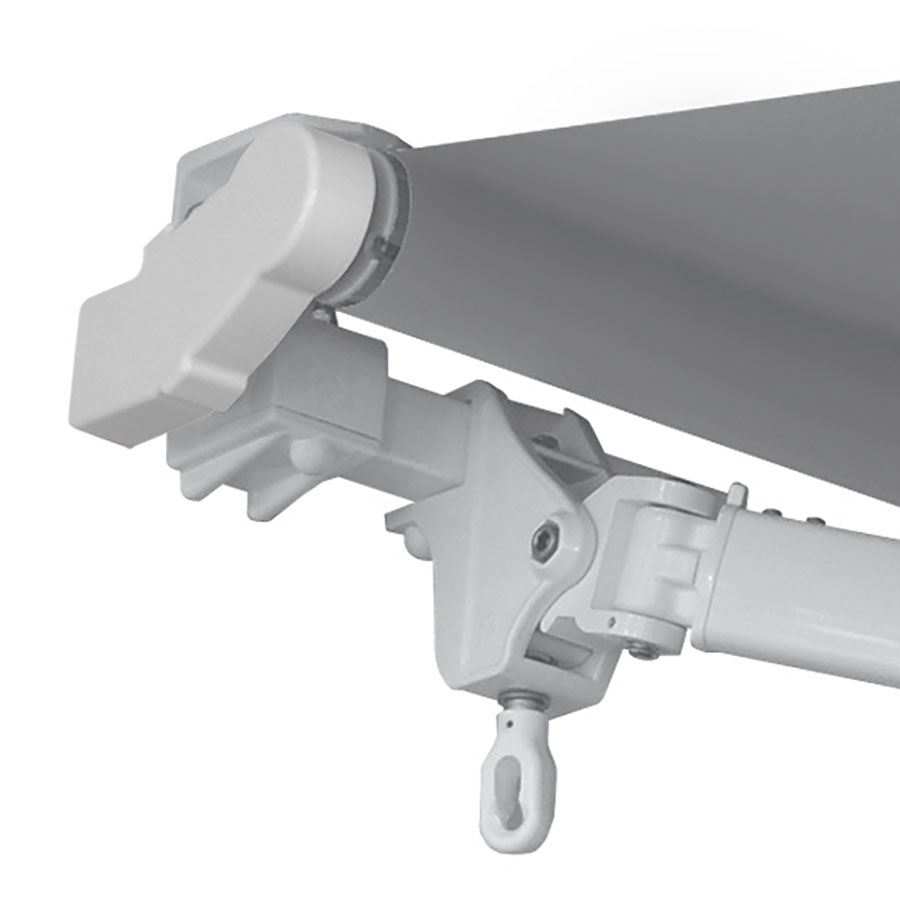

Customer Adjustable Pitch Control

Adjustment range between 5-60 degrees

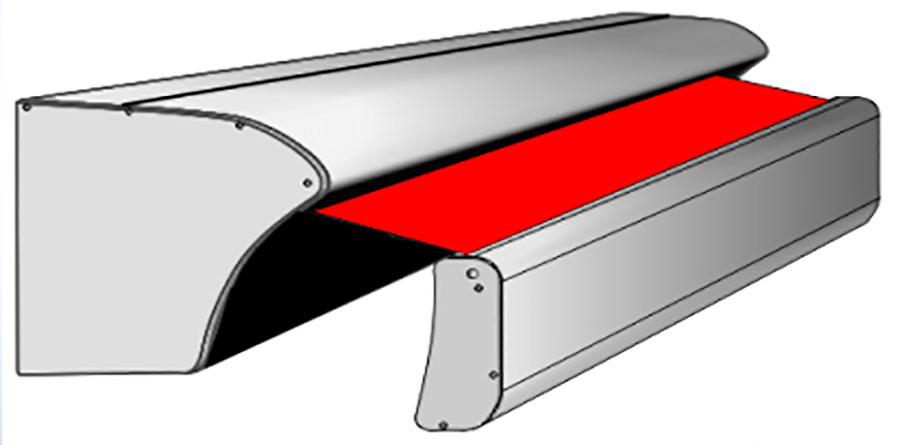

Extruded Aluminium Hood & Wider Front Bar

For awnings up to 7m wide.  Can be retrofitted to existing Australia Folding Arm Awnings.


Top Fix Brackets

Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Sensor RTS with LED feedback in White


Fascia 10 & 22 degree brackets


Rafter brackets 125mm or 200mm


Australia Hood Bracket (For Standard Awning, not Semi-Cassette)


Extendable Front Valance

Available for awnings up to 6m in width.  Drop up to 1.2m using hemmed acrylic fabric and 2m using unhemmed acrylic fabric.

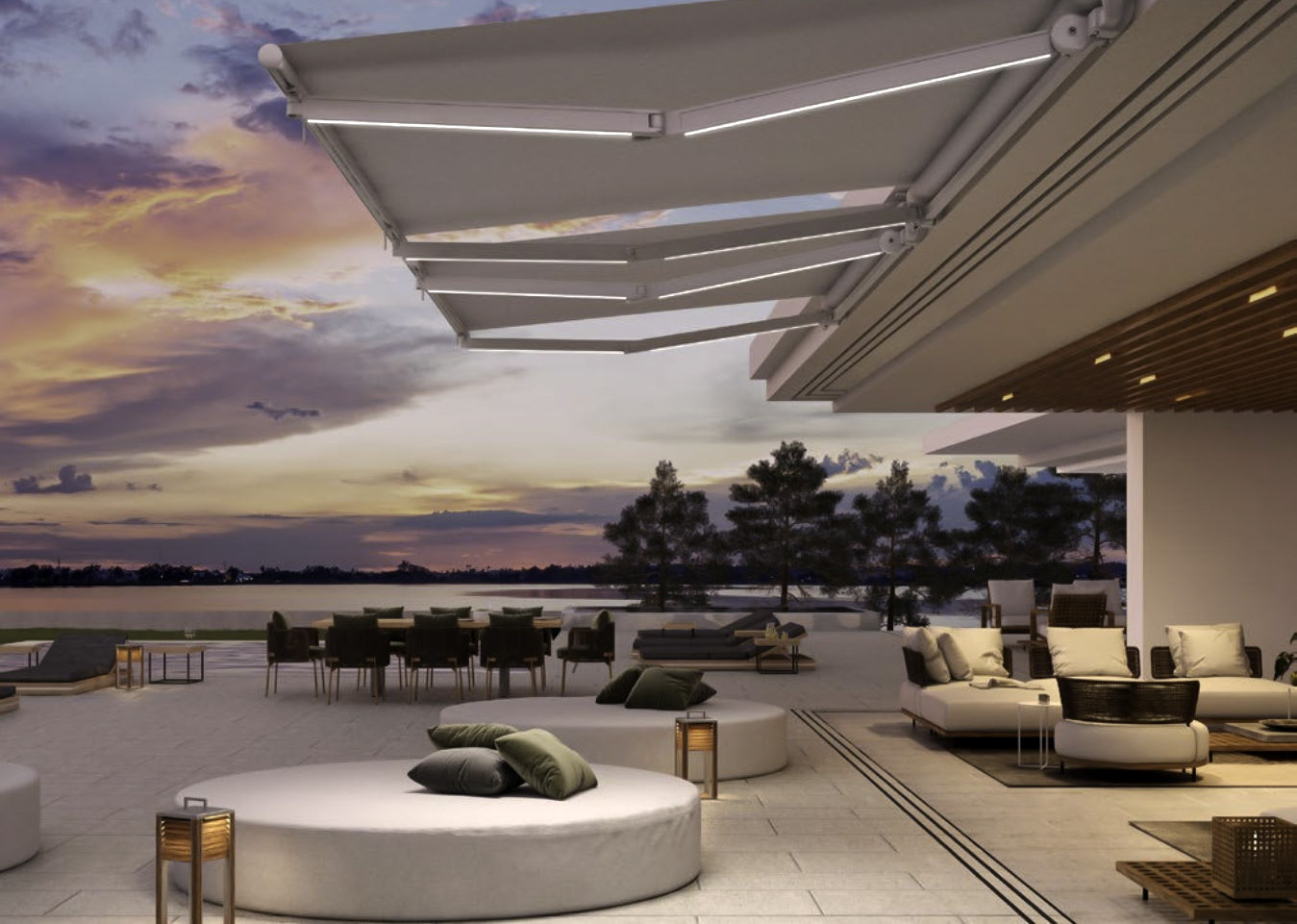

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.

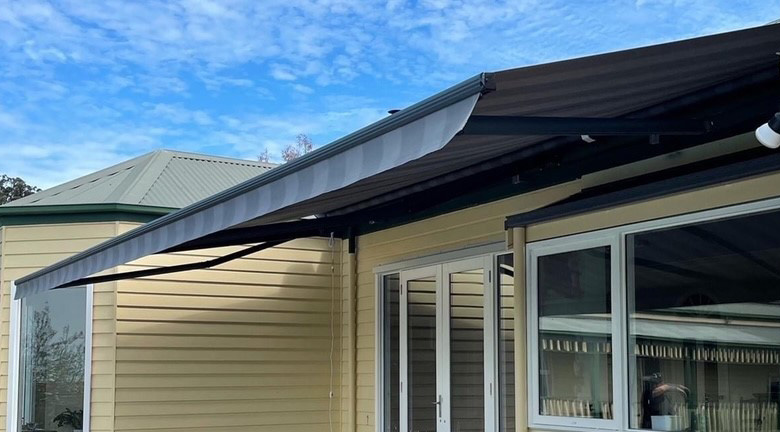

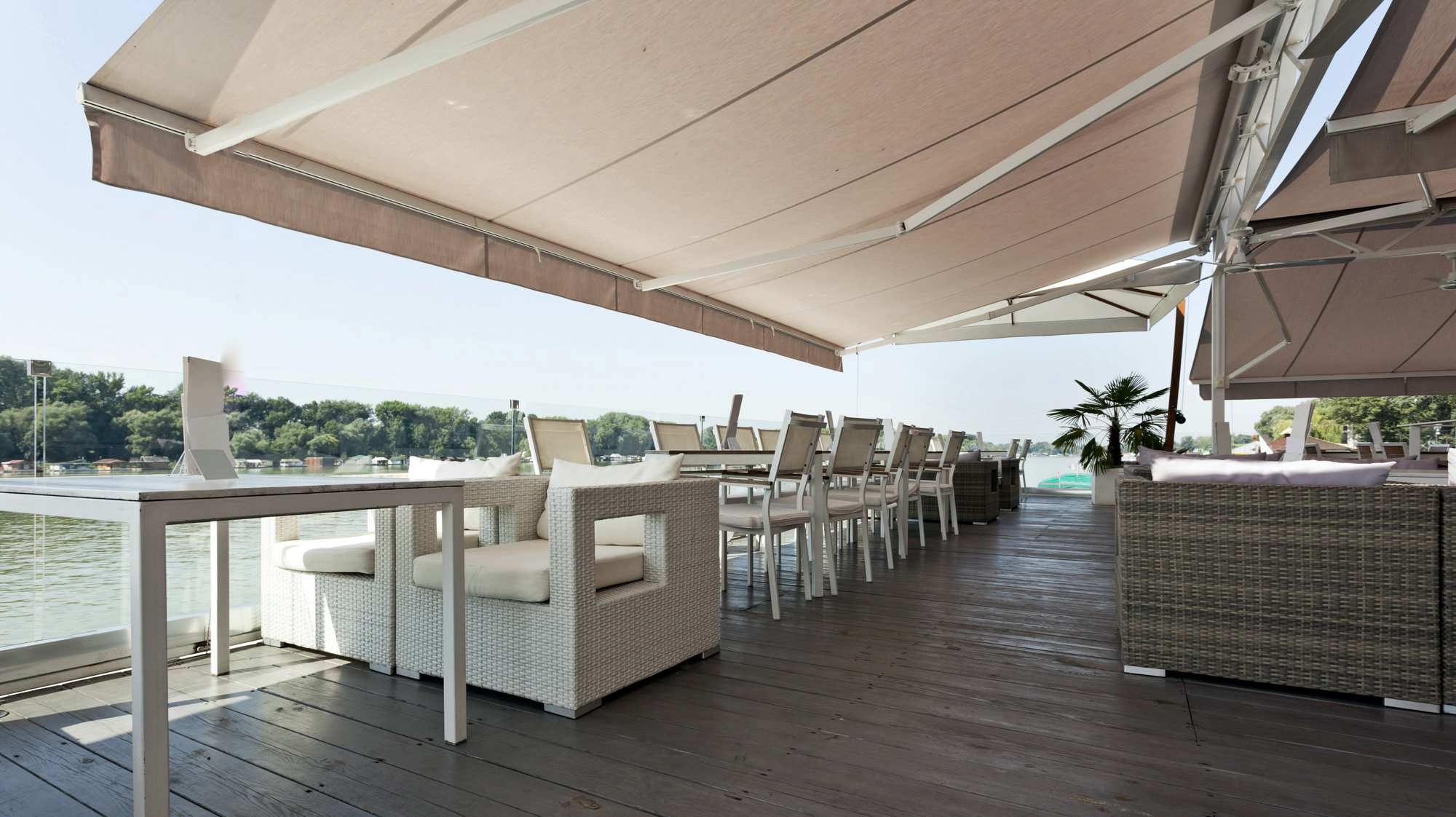

Australia R-90 Folding Arm Awning

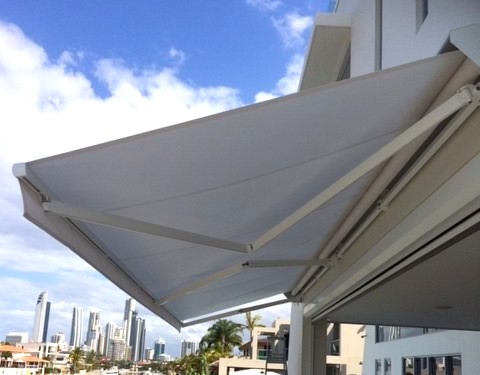

Photo courtesy of Blinds Plus Brisbane

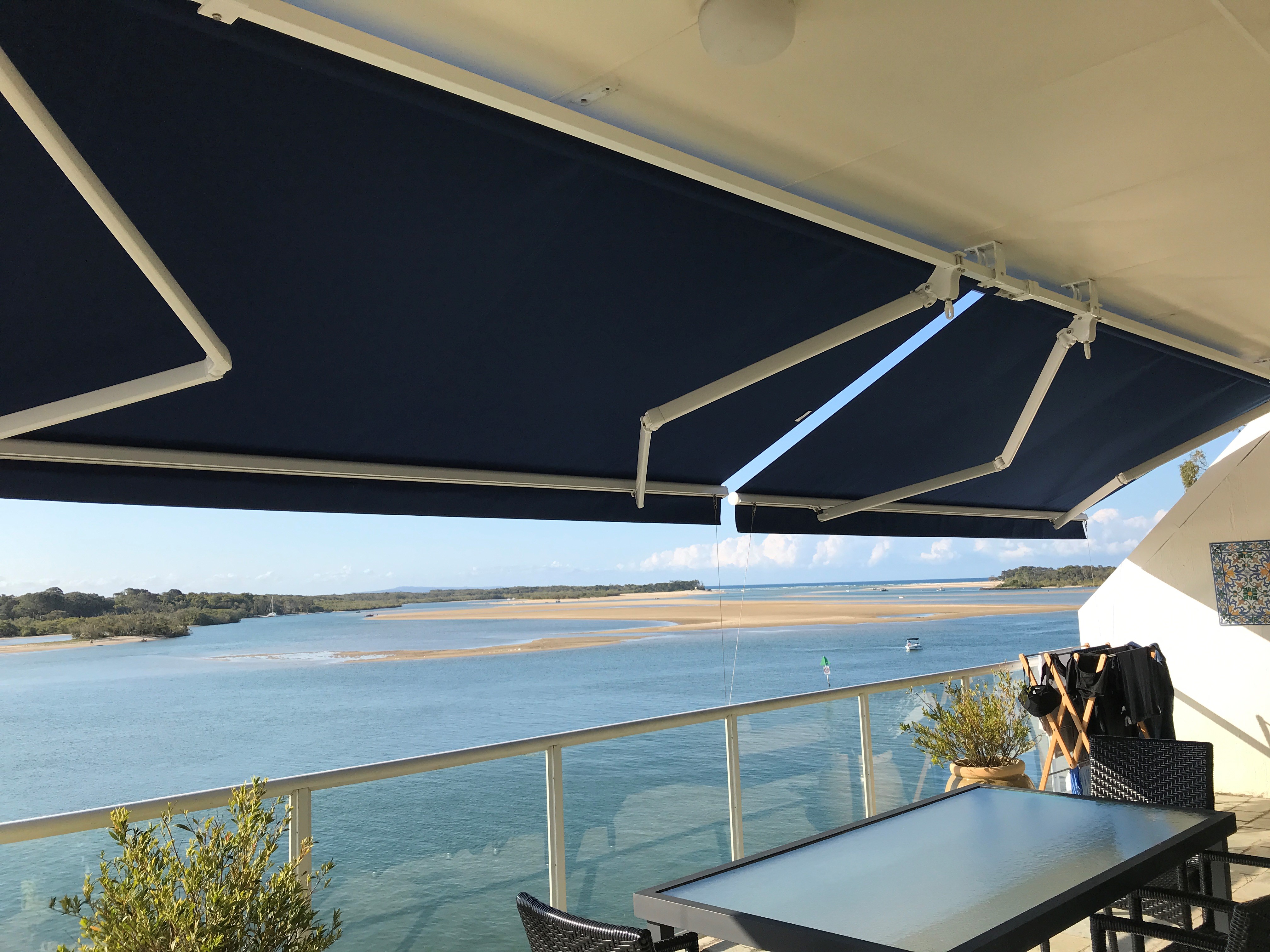

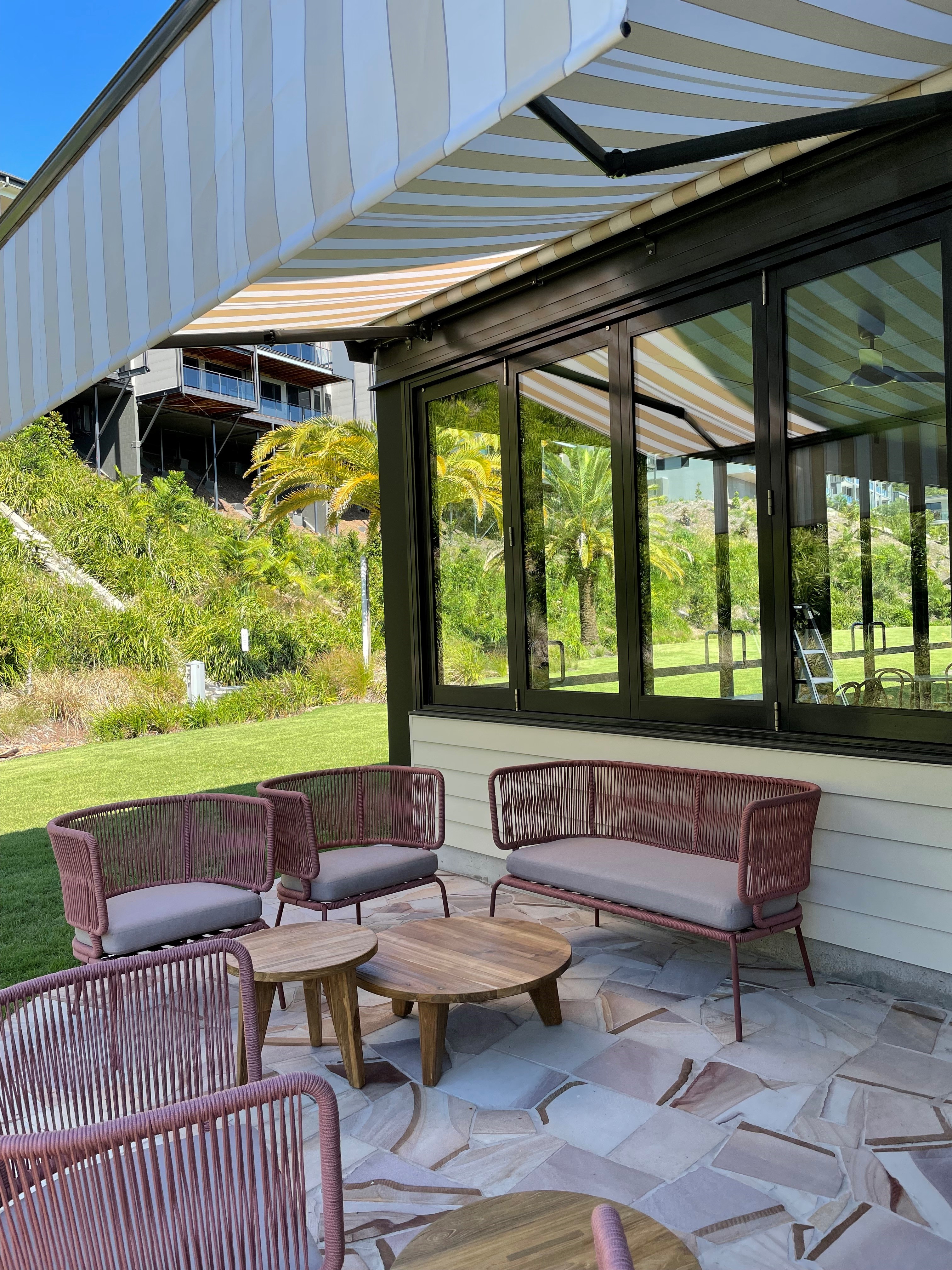

Australia R-90 Folding Arm Awning

Photo courtesy of Jan Murphy Inside and Outside Designs Noosaville

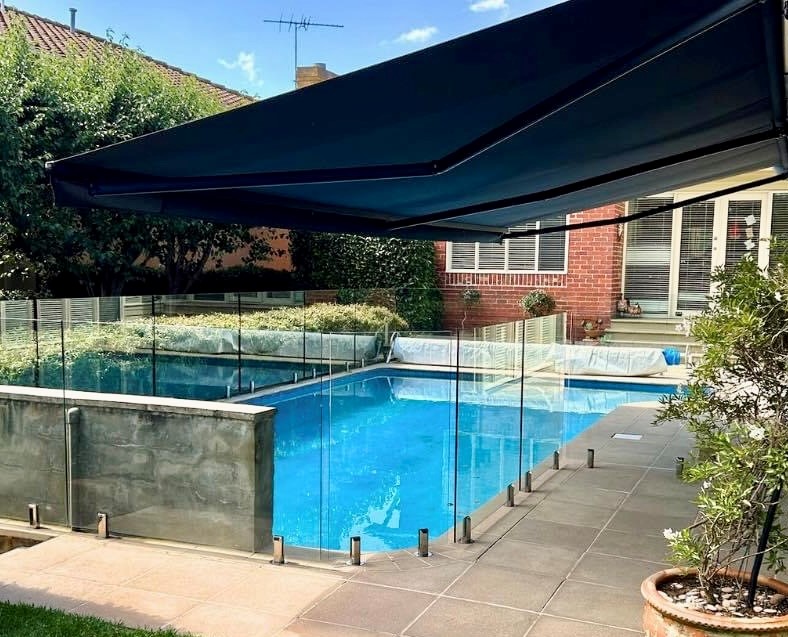

Australia R-90 Folding Arm Awning

Australia R-90 Folding Arm Awning

Australia R-90 Folding Arm Awning

Photo courtesy of Blinds Plus Brisbane

Photo courtesy of A1 Blinds Melbourne

Photo courtesy of Blinds In Mind Melbourne
