Armony Plus Full Cassette Awning

Armony Plus is the top of the range cassette system with a compact design.

The ARMONY PLUS Folding Arm has a  stylish Front Bar and Tipping system that enables a perfect seal of the cassette when it is closed. This provides protection for both the fabric and components from the elements.

5 Year product hardware warranty.

Usage and Maintenance Manual Brochure

Features

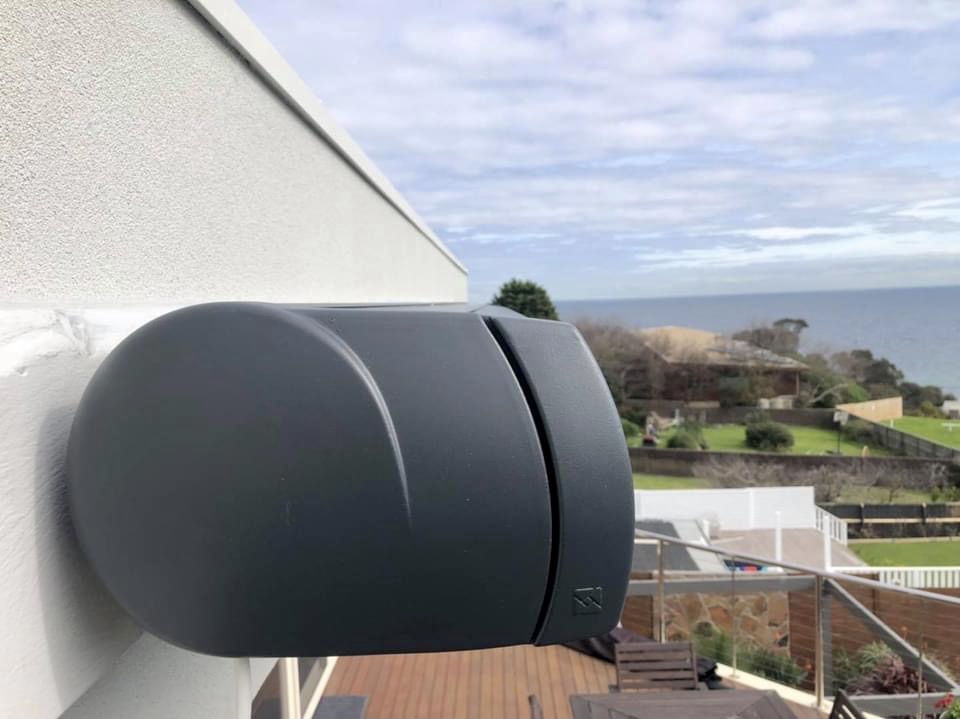

  • Full Cassette awning offering fabric protection and smooth closing
  • 78mm Galvanised Roller Tube with welded stream for added strength
  • 11:1 Gear-Box is fitted as standard – motorisation is an option
  • A PVC Hood is another available option.
  • Pitch Adjustment from 5 degrees to 40 degrees which is set at installation.
  • Arm sizes from 1600mm to 3600mm
  • Width from 2020mm to 7000mm
  • Styled heavy extruded front bar
  • Heavy duty arms with stainless steel chain
  • Awnings over 6m should be motorised

Colour Options

Standard colour  is White.  Other Dulux Duralloy powder-coat colours are available at an additional cost.

WHITE

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian).

Maximum wind speed 37kph.

Specifications

Width 2.02m ↔ 7m

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m

          Armony Plus Wall/Face Fix Installation

      Armony Plus Ceiling/Top Fix Installation

Armony Plus Standard 120mm Wall/Face Fix Bracket


Product Options

Somfy Motors

Orea 50 RTS 40/17 for 2 arm awning

Orea 50 RTS 50/12 for 3 arms up to 2.1m projection

Orea 60 RTS 55/17 for 3 arms over 2.1m projection

Hood

A PVC hood is available as an optional extra



50mm Face Fix Brackets or 50/120mm Top Fix Brackets

Armony Plus 50mm Wall/Face Fix Bracket


Armony Plus 120mm Ceiling/Top Fix Bracket

Armony Plus 50mm Ceiling/Top Fix Bracket


Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Sensor RTS with LED feedback in White


Reverse Fascia 10 & 22 degree brackets

Reverse Fascia 10 & 22 degree brackets need to be used in conjunction with the 50mm wall brackets.

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.

Photo courtesy of A1 Blinds Melbourne

Photo courtesy of A1 Blinds Melbourne
